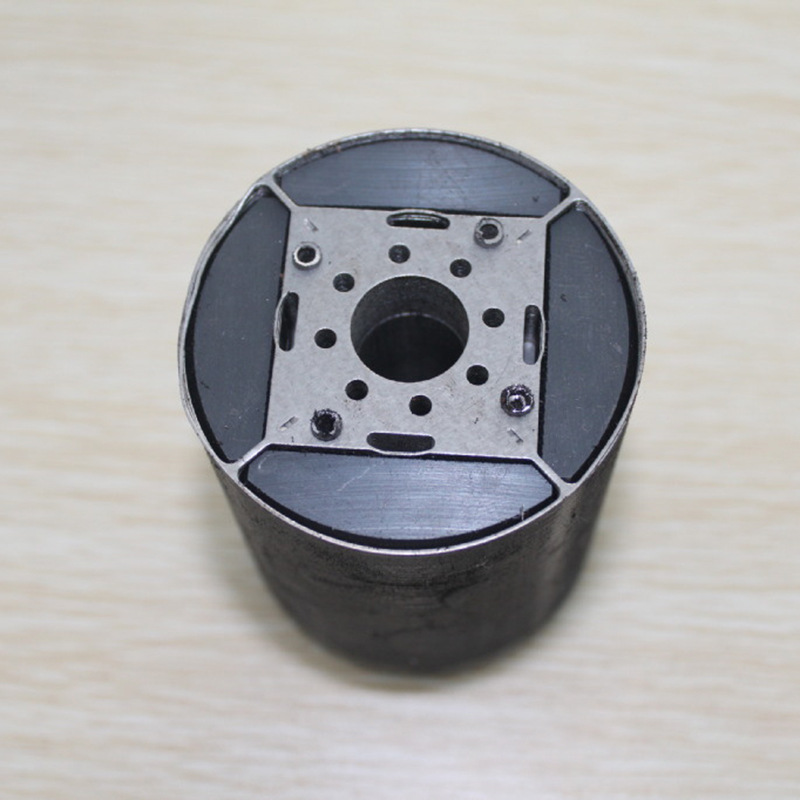

传动用动力电机
应用于传动工具和动力驱动装置
额定电压(Voltage):48V 额定功率(Power rated):
电机型号(Type): 测试人员(Tester):
电机编号(Number):440 测试日期(Test Date): 2010.05.05
*********************************************************************************************
电压电流输入功率转矩转速输出功率效率时间
序号
V A W N.m rpm W % S
1 48.06 1.734 83.37 0.053 3964 21.58 25.9 0.000
2 48.04 2.142 102.9 0.103 3952 42.21 41.0 2.703
3 48.03 2.317 111.3 0.125 3944 51.20 46.0 4.406
4 48.03 2.530 121.5 0.143 3939 58.98 48.5 6.109
5 48.02 2.735 131.3 0.171 3931 69.97 53.3 7.812
6 48.01 2.977 142.9 0.197 3923 80.92 56.6 9.515
7 47.99 3.310 158.8 0.236 3916 96.76 60.9 11.22
8 47.98 3.638 174.6 0.274 3905 112.0 64.2 12.92
9 47.97 4.044 194.0 0.320 3895 130.5 67.3 14.63
10 47.95 4.430 212.4 0.367 3885 148.9 70.1 16.33
11 47.93 4.932 236.4 0.429 3868 173.3 73.3 18.03
12 47.91 5.412 259.3 0.487 3856 196.6 75.8 19.73
13 47.88 6.044 289.4 0.560 3836 224.9 77.7 21.44
14 47.86 6.643 317.9 0.634 3821 253.6 79.8 23.14
15 47.83 7.351 351.6 0.722 3800 287.3 81.7 24.84
16 47.80 8.069 385.7 0.807 3785 319.8 82.9 26.55
17 47.77 8.923 426.2 0.904 3764 356.3 83.6 28.25
18 47.74 9.697 463.0 1.013 3737 396.4 85.6 29.95
19 47.70 10.72 511.3 1.129 3716 438.9 85.8 31.66
20 47.66 11.71 557.9 1.252 3696 484.1 86.8 33.36
21 47.61 12.84 611.3 1.392 3662 533.7 87.3 35.06
22 47.57 13.92 662.3 1.525 3637 580.3 87.6 36.77
23 47.52 15.14 719.7 1.688 3602 636.2 88.4 38.47
24 47.47 16.42 779.5 1.839 3576 688.5 88.3 40.17
25 47.42 17.78 843.3 2.017 3540 747.6 88.7 41.88
26 47.36 19.15 907.2 2.185 3512 803.1 88.5 43.58
27 47.30 20.61 974.9 2.366 3482 862.6 88.5 45.28
28 47.24 22.11 1044 2.563 3444 924.2 88.5 46.98
29 47.18 23.65 1116 2.759 3410 984.7 88.3 48.69
30 47.12 25.25 1190 2.967 3369 1046 88.0 50.39
31 47.05 27.04 1272 3.177 3334 1109 87.2 52.09
32 46.98 28.61 1344 3.378 3299 1166 86.8 53.80
33 46.91 30.36 1424 3.616 3251 1231 86.4 55.50
34 46.84 32.14 1506 3.823 3219 1288 85.6 57.20
35 46.77 33.90 1586 4.071 3169 1350 85.2 58.91
36 46.70 35.72 1668 4.294 3127 1406 84.3 60.61
37 46.62 37.59 1753 4.529 3087 1464 83.5 62.31
38 46.54 39.51 1839 4.780 3029 1516 82.4 64.02
39 50.25 31.34 1575 4.364 2265 1035 65.7 65.72
40 48.13 0.034 1.637 0.145 0 0 0 67.42
