电压:220
驱动电压:220
起订:50台
供应:1000台
发货:20天内
| 电压 | 220 |
|---|---|
| 驱动电压 | 220 |
| 电阻 | 联系客服 |
| 电流 | 联系客服 |
| 相电流 | 0.35~0.6 |
| 相电感 | 2.2~18.5 |
| 电感 | 联系客服 |
| 环境温度 | -20~50 |
| 重量 | 0.105~0.18 |
| 步距角 | 0.9 |
| 相数 | 2 |
| 品牌 | 美桑 |
| 型号 | 28HS |

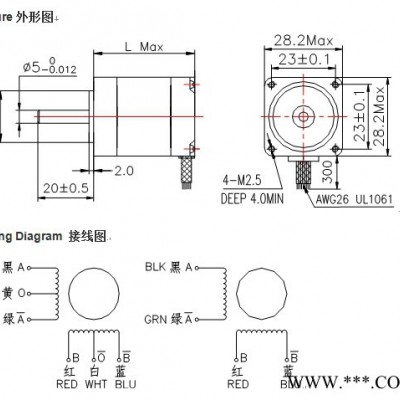

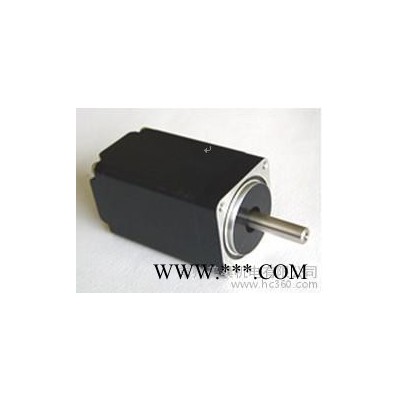

2-Phase Hybrid Stepping Motor Series 28HS
步距角(NEMA 11) 1.8°
规格Specifications of Series 28HS
| Model 型号 | Holding Torque 静力矩 (N·cm±10%) | Current/ Phase 相电流 (A) | Resistance /Phase 相电阻 (ohms±10%) | Inductance/ Phase 相电感 (mH±20%) | Detent Torque 定位力矩(N·cm) | Rotor Inertia 转动惯量 (g-cm 2 ) | Length 长度(mm) | Weight 重量 |
| 28HS2A28-064 | 4.5 | 0.6 | 4.2 | 2.2 | 0.3 | 6 | 28 | 105 |
| 28HS2A28-044 | 4.5 | 0.35 | 12 | 5.8 | 0.3 | 6 | 28 | 105 |
| 28HS2A33-064 | 6.0 | 0.6 | 5.5 | 3.2 | 0.4 | 8 | 33 | 110 |
| 28HS2A33-044 | 6.0 | 0.35 | 15 | 9.2 | 0.4 | 8 | 33 | 110 |
| 28HS2A41-064 | 6.0 | 0.6 | 7.0 | 6.0 | 0.5 | 11 | 41 | 140 |
| 28HS2A41-044 | 6.0 | 0.35 | 20 | 15 | 0.5 | 11 | 41 | 140 |
| 28HS2A50-064 | 10 | 0.6 | 9.0 | 7.2 | 0.8 | 13 | 50 | 180 |
| 28HS2A50-044 | 10 | 0.35 | 24 | 18.5 | 0.8 | 13 | 50 | 180 |
Motor are available with different winding and mechanical modification to meet specific applications. 电机可根据客户要求定制。
