电压:220
驱动电压:220
起订:50台
供应:1000台
发货:20天内
| 电压 | 220 |
|---|---|
| 驱动电压 | 220 |
| 电阻 | 联系客服 |
| 电流 | 联系客服 |
| 相电流 | 0.36~0.8 |
| 相电感 | 4.2~30 |
| 电感 | 联系客服 |
| 环境温度 | -20~50 |
| 重量 | .0.13~0.19 |
| 步距角 | 0.9 |
| 相数 | 2 |
| 品牌 | 美桑 |
| 型号 | 35HM |

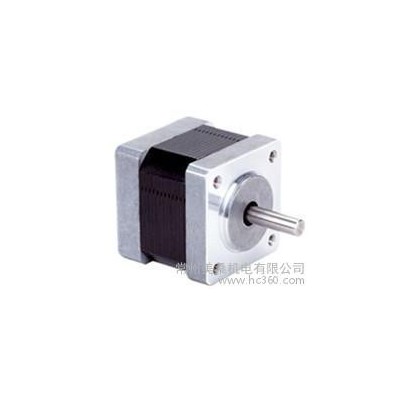

2相步进电机
步距角(NEMA 14) 0.9°

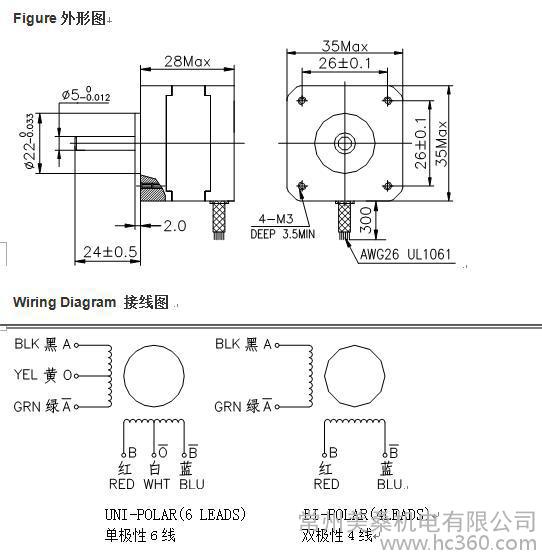

规格 Specifications of Series 35HM
| Model 型号 | Holding Torque 静力矩 (N·cm±10%) | Current/Phase 相电流 (A) | Resistance/Phase 相电阻 (ohms±10%) | Inductance/Phase 相电感 (mH±20%) | Detent Torque 定位力矩 | Rotor Inertia (g-cm 2 ) | Length (mm) | Weight (g) |
| 35HM2A28-084 | 9 | 0.8 | 4.5 | 4.2 | 0.3 | 12 | 28 | 130 |
| 35HM2A28-064 | 9 | 0.55 | 10 | 9.5 | 0.3 | 12 | 28 | 130 |
| 35HM2A28-044 | 9 | 0.36 | 22 | 20 | 0.3 | 12 | 28 | 130 |
| 35HM2A28-046 | 8 | 0.4 | 30 | 12 | 0.3 | 12 | 28 | 130 |
| 35HM2A34-084 | 14 | 0.8 | 6 | 10 | 0.6 | 18 | 34 | 190 |
| 35HM2A34-064 | 14 | 0.55 | 12 | 19 | 0.6 | 18 | 34 | 190 |
| 35HM2A34-044 | 14 | 0.36 | 28 | 42 | 0.6 | 18 | 34 | 190 |
| 35HM2A34-046 | 10 | 0.4 | 30 | 18 | 0.6 | 18 | 34 | 190 |
Motor are available with different winding and mechanical modification to meet specific applications. 电机可根据客户要求定制。
