品牌:山东招远金凤
别名:搅拌槽
用途:选矿
起订:100台
供应:100台
发货:10天内
| 别名 | 搅拌槽 |
|---|---|
| 用途 | 选矿 |
| 规格 | 1500x1500 |
| 产品别名 | 搅拌槽 |
| 外形尺寸 | 1500x1500 |
| 产地 | 山东烟台招远 |

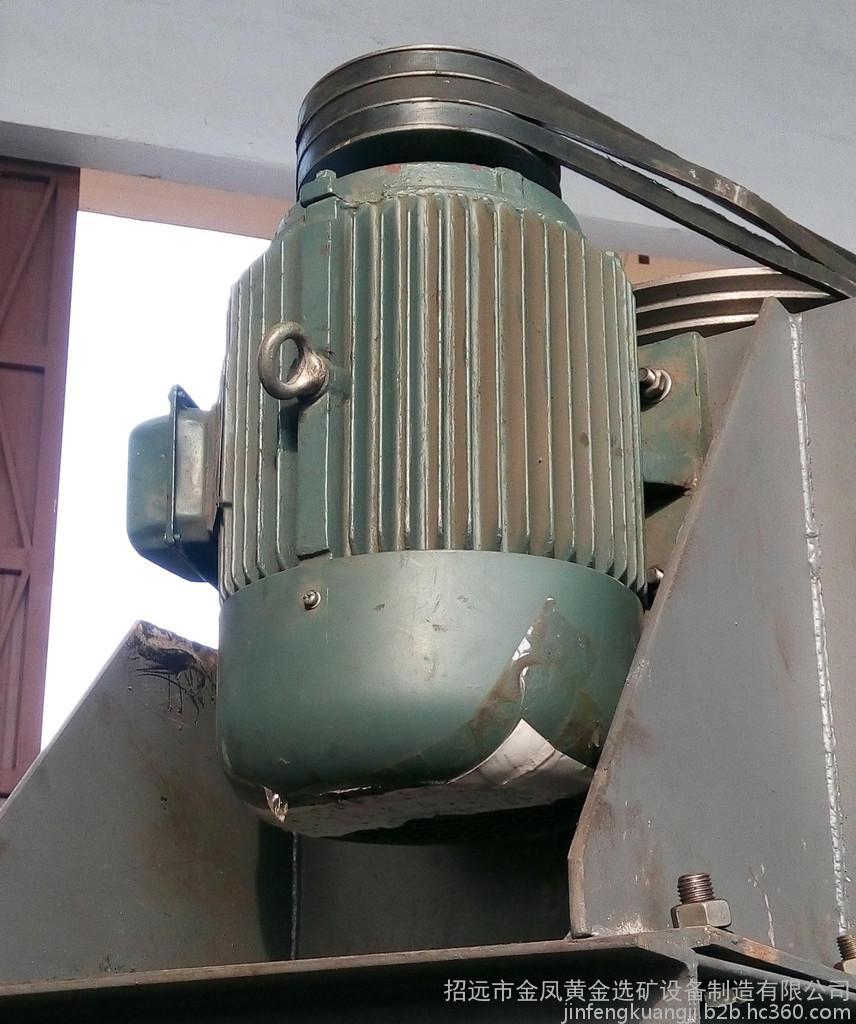

| 电动机功率 | 0.55kw |
| 结构形式 | 立式 |
| 类型 | 搅拌槽 |
| 应用领域 | 矿物搅拌 |
| 种类 | 选矿设备 |
| 磨矿方式 | 湿式 |
| 品牌 | 金凤 |
| 型号 | RJ1500 |
| 加工定制 | 是 |

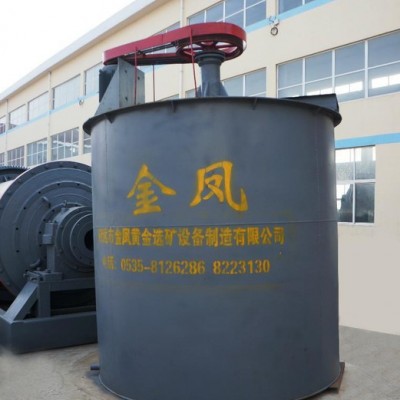

1.1产品特点

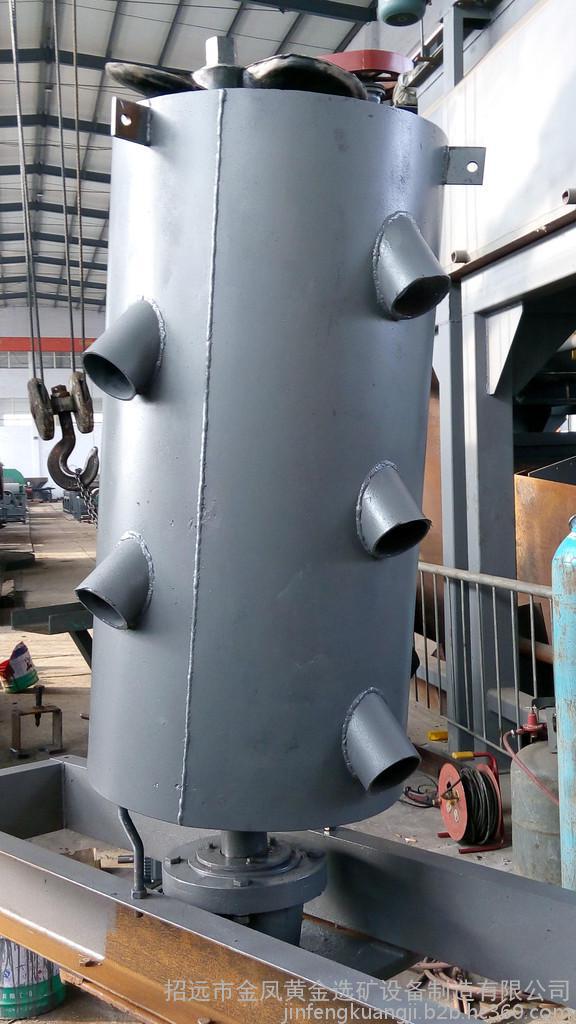

该产品是目前常用的普通搅拌槽，叶轮位于循环筒的下口部位，将矿浆、药剂加入带吸入管孔的循环筒内进行搅拌。本公司通过实验，设计的新型叶轮不同于原来的Ⅰ、Ⅱ型搅拌槽、搅拌效率高。
1.2选用说明
1.2.1可根据用户需要制作橡胶叶轮、尼龙叶轮等产品，订货时需特别注明。
1.2.2可根据用户要求设置电机、给矿口、排矿口的相对位置，一般在现场安装时组装相关部件。
1.2.3 RJ搅拌槽有锥底和平底两种型式，锥底型式需特别注明。
1.1 Product Features
This product is the most commonly used ordinary agitating tank at present. The impeller is located at the bottom opening of the cycling cylinder, taking the ore pulp and chemical reagent into the cycling cylinder with a suction orifice for agitating. The new impeller designed through experiments is different from the original agitating tank I and II, with high agitating efficiency.
1.2 Notes for selection
1.2.1 We can make rubber and nylon impeller as required by the customer. Please specify the type while placing your order.
1.2.2 We can arrange the relative positions of motor, feeding opening and discharging opening as required by the customer. Generally, relevant parts are assembled at the time of on-site installation.
1.2.3 There are two types of RJ agitating tank: cone base and flat base. Please specify it if a cone base type is demanded.
RJ型单叶轮搅拌槽技术参数表 Technical parameter list of RJ single impeller agitating tank
| 型号 Model | 槽的内部尺寸（mm) Internal size of trough | 有效容积 (m3） Effective volume | 搅拌器Stirrer | 电动机 Motor | 外形尺寸（mm） Dimension | 重量 （kg） Weight | ||||
| 直径 （mm) diameter | 功率 （r/min） Speed | 型号 Model | 功率 （kw） Power | |||||||
| 长度 Length | 高度 Height | |||||||||
| 直径 diameter | 高度 Heigh | |||||||||
| RJ05 | 500 | 500 | 0.078 | 150 | 690 | Y80M2-4 | 0.75 | 720 | 874 | 110 |
| RJ07 | 750 | 750 | 0.26 | 240 | 530 | Y90L-4 | 1.5 | 939 | 1241 | 228 |
| RJ10 | 1000 | 1000 | 0.58 | 240 | 530 | Y90L-4 | 1.5 | 1080 | 1665 | 350 |
| RJ12 | 1200 | 1200 | 1.14 | 400 | 320 | Y132S-4 | 3 | 1540 | 1858 | 765 |
| RJ15 | 1500 | 1500 | 2.2 | 400 | 320 | Y132S-4 | 3 | 1690 | 2171 | 1360 |
| RJ20 | 2000 | 2000 | 5.5 | 550 | 230 | Y132M2-4 | 5.5 | 2381 | 3046 | 1655 |
| RJ25 | 2500 | 2500 | 11 | 625 | 230 | Y160M-4 | 7.5 | 2881 | 3546 | 2766 |
| RJ30 | 3000 | 3000 | 19.1 | 900 | 210 | Y225S-8 | 18.5 | 3266 | 4325 | 4296 |
