加工定制:是
<div class:"mod mod-offe
起订:1个
发送询价
| 加工定制 | 是 |
|---|---|
| "mod mod-offe | |
| 材质 | 100级 |
| 适用范围 | 起重吊装 |
| 最大载荷 | 10（Ton） |
| 品牌 | YOKE |
| 型号 | 8-271 |

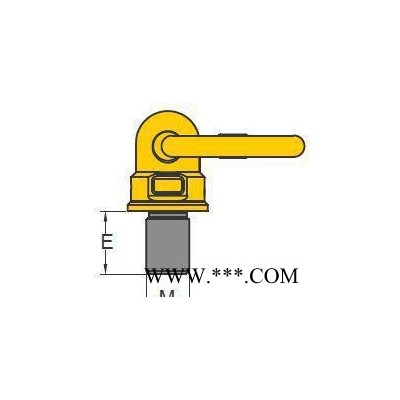

| Item No. | Working Load Limit | Thread | Dimensions (mm) | N.W. | |||||||
| tonnes* | M | A | B | C | D | E | F | G | K | Kg | |
x (y) [z] | |||||||||||
| 8-271-003 | 0.3 (0.4) [0.6] | M8 | 29 | 32 | 40 | 8 | 12 | 75 | 35 | 30 | 0.2 |
| 8-271-004 | 0.45 (0.6) [0.9] | M10 | 29 | 32 | 40 | 8 | 15 | 75 | 35 | 30 | 0.3 |
| 8-271-006 | 0.6 (0.7) [1.2] | M12 | 35 | 50 | 45 | 10 | 18 | 104 | 40 | 36 | 0.4 |
| 8-271-013 | 1.3 (1.5) [2.6] | M16 | 38 | 50 | 54 | 13 | 24 | 114 | 46 | 41 | 0.6 |
| 8-271-020 | 2 (2.5) [4] | M20 | 38 | 56 | 68 | 13 | 30 | 135 | 62 | 55 | 1.4 |
| 8-271-035 | 3.5 (4) [7] | M24 | 40 | 68 | 88 | 18 | 36 | 172 | 78 | 70 | 2.6 |
| 8-271-060 | 6 (7.5) [10] | M30 | 50 | 86 | 120 | 22 | 45 | 207 | 90 | 80 | 4.9 |
| 8-271-080 | 8 (10) [15] | M36 | 50 | 86 | 120 | 22 | 54 | 207 | 90 | 80 | 5.0 |
| 8-271-120 | 12 (13) [17] | M42 | 65 | 90 | 122 | 26 | 63 | 209 | 98 | 84 | 5.5 |
| 8-271-130 | 13 (16) [18] | M48 | 65 | 90 | 122 | 26 | 72 | 209 | 98 | 84 | 5.8 |
| 8-271-140 | 14 (20) [25] | M52 | 70 | 120 | 150 | 32 | 78 | 270 | 120 | 94 | 10.5 |
| 8-271-160 | 16 (22) [28] | M56 | 70 | 120 | 150 | 32 | 84 | 270 | 120 | 94 | 10.7 |
| 8-271-161 | 16 (25) [28] | M64 | 70 | 120 | 150 | 32 | 96 | 270 | 120 | 94 | 11.6 |
| 8-271-310 | 31.5 (40) [50] | M72 | 90 | 130 | 210 | 46 | 108 | 340 | 170 | 145 | 30.6 |
| 8-271-350 | 35 (48) [50] | M80 | 90 | 130 | 210 | 46 | 120 | 340 | 170 | 145 | 31.9 |
| 8-271-130 | 40 (50) [50] | M90 | 90 | 130 | 210 | 46 | 135 | 340 | 170 | 145 | 33.9 |
