| 材质 | 铜，不锈钢 |
|---|---|
| 产地 | 天津 |
| 耐温 | -40℃到100℃ |
| 颜色 | 金属本色 |
| 阻燃性 | 强 |
| 执行质量标准 | 国标 |
| 品牌 | 易科 |
| 型号 | 齐全 |
| 加工定制 | 是 |
| 质量认证 | ce认证 |

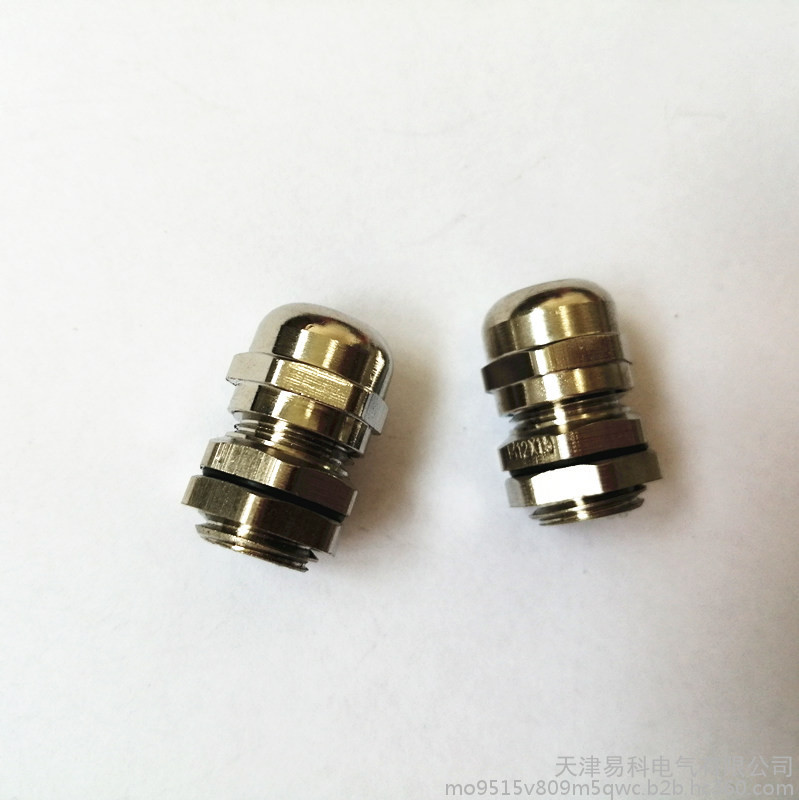

不锈钢金属电缆接头防水接头 格兰头M20*1.5 M10 12 14 16 18 24 25 27
1、产品特性：特殊夹紧爪与加紧圈凹凸相扣设计，配合迫紧头，装配简单，夹紧电缆范围大，抗拉力强，防水防尘，耐腐蚀。 2、产品材质：接头主体黄铜镀镍材质，夹紧件为尼龙(PA)材质，密封件和O型圈采用丁晴橡胶（NBR）制成。
3、防护等级：IP68。工作温度：静态：-40℃到100℃，短时间达120℃。动态：-20℃到 80℃，短时间100℃。
4、 螺纹长度：短螺纹适合于薄型机板的开孔或有内螺纹的设备上；长螺纹适合厚型机板。也可定制加长型螺纹。
5、使用方法：电缆接头是电缆的配套产品，一端将电缆锁紧，另一端接入设备。
| 螺纹规格公制AG Specification of thread AG | 螺纹规格PG Specification of thread PG | 螺纹规格NPT Specification of thread AG | 螺纹规格G Specification of thread G | 适用电缆 Cable range | 螺纹长度GL Thread length | 接合长度H Joint length | 扳手经 Spanner diameter |
| M12*1.5 | PG7 | NPT1/4 | G1/4 | 3-6.5 | 7mm | 19mm | 14mm |
| M14*1.5 | 4-8 | 7mm | 19mm | 18mm | |||
| M16*1.5 | PG9 | NPT3/8 | G3/8 | 4-8 | 8mm | 20mm | 18mm |
| M18*1.5 | PG11 | 5-10 | 8mm | 21mm | 20mm | ||
| M20*1.5 | PG13.5 | NPT1/2 | G1/2 | 6-12 | 8mm | 22mm | 22mm |
| M22*1.5 | PG16 | 10-14 | 8mm | 23mm | 24mm | ||
| M24*1.5 | 10-14 | 9mm | 25mm | 24/27mm | |||
| M25*1.5 | PG19 | 10-14 | 9mm | 25mm | 24/27mm | ||
| M25*1.5 | NPT3/4 | G3/4 | 13-18 | 9mm | 27mm | 30mm | |
| M27*1.5(2) | 13-18 | 9mm | 27mm | 30mm | |||
| M28*1.5(2) | PG21 | 13-18 | 9mm | 27mm | 30mm | ||
| M30*1.5(2) | 13-18 | 9mm | 29mm | 30/32mm | |||
| M32*1.5(2) | PG25 | 15-22 | 10mm | 29mm | 35mm | ||
| M33*1.5(2) | 15-22 | 10mm | 29mm | 35mm | |||
| M36*1.5(2) | PG29 | NPT1 | 18-25 | 10mm | 31mm | 40mm | |
| M37*1.5(2) | G1 | 18-25 | 10mm | 31mm | 40mm | ||
| M40*1.5(2) | 18-25 | 11mm | 31mm | 40/45mm | |||
| M40*1.5(2) | 22-30 | 11mm | 35mm | 45mm | |||
| M42*1.5(2) | PG36 | NPT1-1/4 | 22-30 | 11mm | 35mm | 45mm | |
| M47*1.5(2) | G1-1/4 | 25-33 | 11mm | 37mm | 50mm | ||
| M48*1.5(2) | 25-33 | 11mm | 37mm | 50mm | |||
| M50*1.5(2) | PG42 | NPT1-1/2 | 32-38 | 12mm | 37mm | 55/57mm | |
| M54*1.5(2) | G1-1/2 | 32-38 | 12mm | 38mm | 57mm | ||
| M56*1.5(2) | PG48 | NPT2 | 32-38 | 12mm | 38mm | 57/59mm | |
| M60*1.5(2) | G2 | 37-44 | 13mm | 38mm | 65mm | ||
| M63*1.5(2) | 37-44 | 13mm | 38mm | 65mm | |||
| M64*1.5(2) | PG63 | NPT2-1/2 | 37-44 | 13mm | 38mm | 65/68mm | |
| M72*2 | G2-1/2 | 42-52 | 15mm | 42mm | 77mm | ||
| M75*2 | 42-52 | 15mm | 42mm | 77mm | |||
| M80*2 | NPT3 | 55-62 | 15mm | 45mm | 90mm | ||
| M88*2 | G3 | 65-70 | 15mm | 45mm | 94mm | ||
| M100*2 | 78-84 | 15mm | 45mm | 110mm |
