| 电机功率 | 1.1 |
|---|---|
| 动力类型 | 电动 |
| 规格 | 500 |
| 生产能力 | 0.124 |
| 适用物料 | 矿石，泥浆，冶金 |
| 应用领域 | 矿山，研究院 |
| 转速范围 | 筒里 |
| 作业方式 | 机械 |
| 搅拌机类型 | 矿用圆筒搅拌机 |
| 物料类型 | 矿石，冶金 |
| 布局形式 | 固定，移动 |
| 搅拌方式 | 叶轮搅拌 |
| 每次处理量范围 | 0.124 |
| 搅拌鼓形状 | 圆形 |
| 装置方式 | 电动 |
| 品牌 | 斯特尔 |
| 型号 | 各种 |
| 料桶容量 | 0.124 |

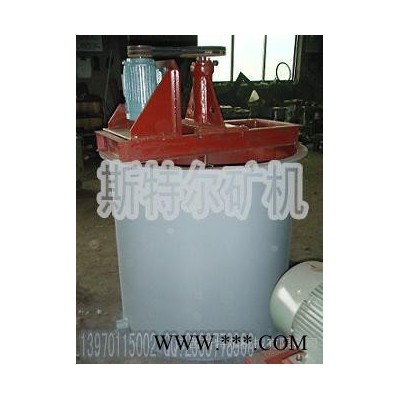

矿用搅拌槽（桶）Agitatingtank
该设备适于浮选、重选、磁选等对浓度不大于35%及固体成分粒度小于1毫米的矿浆进行搅拌，也可用于浮选药剂和其它非金属矿物的搅拌，使矿粒悬浮并于药剂充分接触，混匀，为选别作业创造条件。本产品由原地矿部唯一指定企业生产，执行行业标准。
该系列搅拌槽有以下几种：矿浆搅拌槽、提升式搅拌槽、高浓度搅拌槽、高效搅拌槽、药剂搅拌槽。
The device is suitable forflotation, re-election, magnetic separation, etc. right concentration of notmore than 35% and solid components of the slurry particle size of less than 1mm to stir, but also can be used for flotation agents and other non-metallicminerals, mixing, so that mine suspended particles and in full access to thePharmacy, mixing, in order to create conditions for sorting operations. Thisproduct is the only designated former Ministry of Geology and Mineralproduction, the implementation of industry standards
This series of stirred tank are thefollowing: Agitating tank 、Lifting agitating tank、High concentration agitation tank、 Hing efficiency agitation tank、Specifcatications of shemicalagitation tank 联系人：温会燕 电话：13970115002 QQ:2393778966
| 型号Model | 单位 Uite | 500 | 750 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| 槽体直径Diameter tank | mm | 500 | 750 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| 槽体高度Heighe | mm | 500 | 750 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| 槽体容积Volume tank | m3
| 0.124 | 0.25 | 0.58 | 1.15 | 2.2 | 4.4 | 11.2 | 19.1 | 46 |
| 叶轮直径Impeller Diameter | mm | 150 | 240 | 240 | 310 | 400 | 550 | 630 | 700 | 1000 |
| 叶轮转速Impeller speed | r/min | 1000 | 530 | 530 | 492 | 320 | 230 | 230 | 210 | 121.6 |
| 功率Power | kw | 1.1 | 1.5 | 1.5 | 2.2 | 3 | 5.5 | 7.5 | 7.5 | 30 |
| 重量Weighe | kg | 260 | 320 | 480 | 908 | 1280 | 1760 | 2700 | 5190 | 12510 |
