加工定制:是
类型:直流风扇
起订:1000台
供应:9952台
| 加工定制 | 是 |
|---|---|
| 类型 | 直流风扇 |
| 电压 | 12（V） |
| 品牌 | ADDA |
| 型号 | AD08012XB327200 |
原装ADDA风扇AD08012XB327200电梯控制柜用8032/12V带告警功能

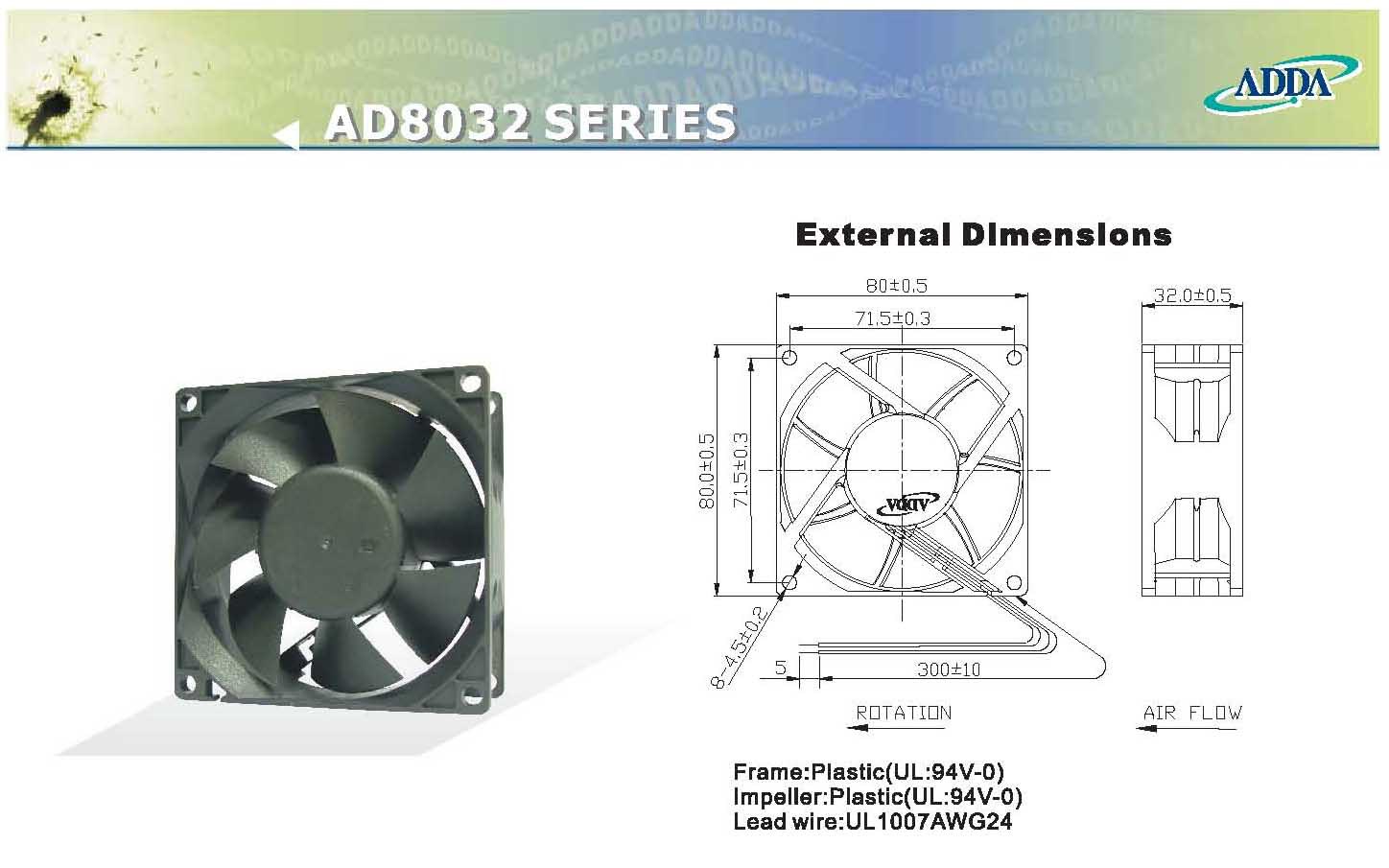

一、产品尺寸
二、产品型号：
| Fan =DC-Fan | Size =80x80x32 | Speed = | Flow = | Noise = |
| Bearing type: ◎=Ball ※=Sleeve ○=1B1S ●=Hypro Bearing | |||||||||
| frame Size | Model No | Bearing | Volt. (VAC) | Current (A) | Speed (rpm) | Air Flow (CFM) | Pressure (InAq) | Noise (dB/A) | |
| 80x80x32 | AD08012DB327B00 | ◎ | 12 | 0.13 | 3000 | 41.200 | 0.205 | 34.0 | |
| 80x80x32 | AD08012LB327B00 | ◎ | 12 | 0.25 | 3800 | 52.200 | 0.320 | 40.4 | |
| 80x80x32 | AD08012MB327B00 | ◎ | 12 | 0.35 | 4600 | 64.400 | 0.480 | 45.6 | |
| 80x80x32 | AD08012HB327B00 | ◎ | 12 | 0.50 | 5400 | 74.800 | 0.640 | 50.2 | |
| 80x80x32 | AD08012UB327B00 | ◎ | 12 | 0.76 | 6200 | 87.900 | 0.840 | 53.5 | |
| 80x80x32 | AD08012XB327B00 | ◎ | 12 | 1.15 | 7000 | 97.000 | 1.040 | 58.0 | |
| 80x80x32 | AD08024DB327B00 | ◎ | 24 | 0.10 | 3000 | 41.200 | 0.205 | 34.0 | |
| 80x80x32 | AD08024LB327B00 | ◎ | 24 | 0.12 | 3800 | 52.200 | 0.320 | 40.4 | |
| 80x80x32 | AD08024MB327B00 | ◎ | 24 | 0.18 | 4600 | 64.400 | 0.480 | 45.6 | |
| 80x80x32 | AD08024HB327B00 | ◎ | 24 | 0.28 | 5400 | 74.800 | 0.640 | 50.2 | |
| 80x80x32 | AD08024UB327B00 | ◎ | 24 | 0.44 | 6200 | 87.900 | 0.840 | 53.5 | |
| 80x80x32 | AD08024XB327B00 | ◎ | 24 | 0.56 | 7000 | 97.000 | 1.040 | 58.0 | |
| 80x80x32(n) | AD0812LB-Y5B(N) | ◎ | 12 | 0.11 | 3000 | 39.578 | 0.187 | 35.5 | |
| 80x80x32(n) | AD0812MB-Y5B(N) | ◎ | 12 | 0.16 | 3400 | 44.764 | 0.241 | 36.7 | |
| 80x80x32(n) | AD0812HB-Y5B(N) | ◎ | 12 | 0.19 | 3800 | 49.000 | 0.292 | 42.4 | |
| 80x80x32(n) | AD0812UB-Y5B(NCU) | ◎ | 12 | 0.23 | 4200 | 55.386 | 0.316 | 44.0 | |
| 80x80x32(n) | AD0824LB-Y53(N) | ◎ | 24 | 0.07 | 3000 | 39.578 | 0.187 | 35.5 | |
| 80x80x32(n) | AD0824MB-Y53(N) | ◎ | 24 | 0.10 | 3400 | 44.764 | 0.241 | 36.7 | |
| 80x80x32(n) | AD0824HB-Y53(N) | ◎ | 24 | 0.12 | 3800 | 49.000 | 0.292 | 42.4 | |
| 80x80x32(n) | AD0824UB-Y53(NCU) | ◎ | 24 | 0.15 | 4200 | 55.386 | 0.316 | 44.0 | |
| 80x80x32(n) | AD0848LB-Y53 | ◎ | 48 | 0.06 | 3000 | 39.578 | 0.187 | 35.5 | |
| 80x80x32(n) | AD0848MB-Y53 | ◎ | 48 | 0.07 | 3400 | 44.764 | 0.241 | 36.7 | |
| 80x80x32(n) | AD0848HB-Y53 | ◎ | 48 | 0.08 | 3800 | 49.000 | 0.292 | 42.4 | |
| 80x80x32(n) | AD0848UB-Y53(CU) | ◎ | 48 | 0.11 | 4200 | 55.386 | 0.316 | 44.0 | |
三、ADDA直流风机命名规则：

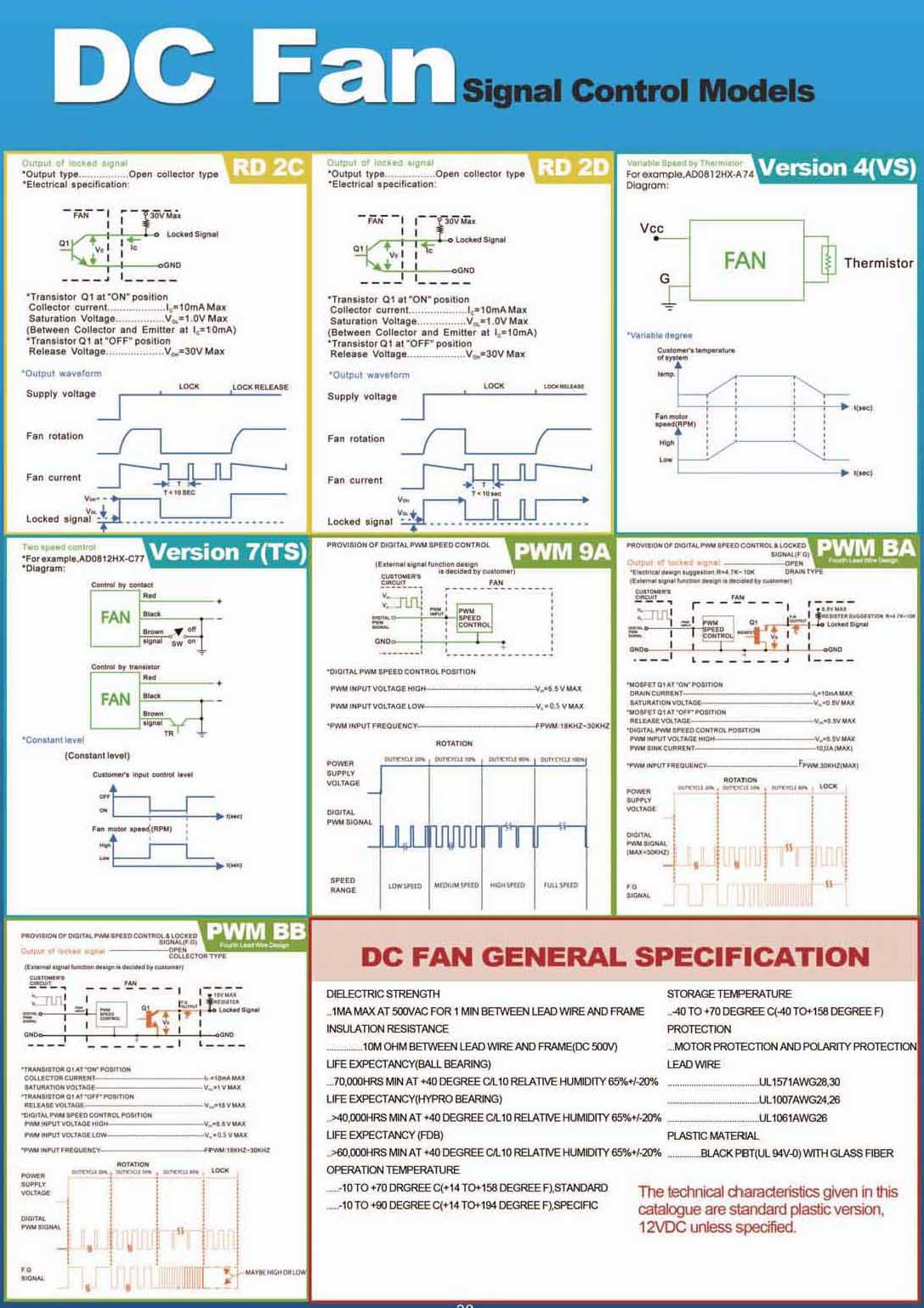

四、ADDA直流风机特殊功能电路图：
1：
2：
五：ADDA直流风机80*80MM常备现货型号：
80*80*15：
AD0812HS-D70 AD0812HB-D91GP(AD0812HB-D93GP) AD0812HB-D91(AD0812HB-D96) AD0812XB-D71(AD0812XB-D76) AD0812UB-D91(AD0812UB-D96) AD0812HB-D71(AD0812HB-D76) AD0812DB-D91(AD0812DB-D96) AD0812MB-D71(AD0812MB-D76) AD0812UB-D71(AD0812UB-D76) AD0812LB-D71(AD0812LB-D76) AD0812LB-D91(AD0812LB-D96) AD0824HB-D91(AD0824HB-D96) AD0812LB-D91GP(AD0812LB-D93GP) AD0812MB-D91GP(AD0812MB-D93GP) AD0824LB-D91(AD0824LB-D96) AD0812MB-D91(AD0812MB-D96) AD0824MB-D91(AD0824MB-D96) AD0824UB-D91(AD0824UB-D96) AD0812LB-D91GP(AD0812DB-D93GP) AD0824DB-D91(AD0824DB-D96) AD0812UB-D91GP(AD0812UB-D93GP) AG08012UB159000 AD0812XB-D91GP(AD0812XB-D93GP)
80*80*20：
AD0812MS-C70(AD0812MB-C70) AD0812LX-C70 AD0812HS-C70(AD0812HB-C70) AD0824MS-C70(AD0824MB-C70) AD0812LS-C70(AD0812LB-C70) AD0812MX-C70 AD0812US-C71(AD0812UB-C71) AD0812HX-C70 AD0824MX-C70
80*80*25：
AD0824US-A70GL(AD0824UB-A70GL) AD0812HB-A70GL AD0812HS-A70GL AD0824HX-A70GL AD0824UX-A70GL AD0824MS-A70GL(AD0824MB-A70GL) AD0812DS-A70GL(AD0812DB-A70GL) AD0812US-A70GL(AD0812UB-A70GL) AD0812HB-A70GL AD0848HB-A71GL AD0824VB-A73GP(AD0824VB-A71GP) AD0824UB-A71GL AD0824HB-A70GL AD0824HS-A70GL AD0812VB-A73GP(AD0812VB-A71GP) AD0812UX-A71GL(AD0812UB-A71GL) AD0812MS-A70GL AD0812MB-A70GL AD0812LS-A70GL(AD0812LB-A70GL) AD0812HX-A70GL AD0812MX-A70GL AD0812DX-A70GL AD0812LX-A70GL AD0824LS-A70GL(AD0824LB-A70GL) AD0824LX-A70GL AD0824DX-A70GL AD0812UX-A70GL AD0824MX-A70GL AD0824DS-A70GL(AD0824DB-A70GL) AG08012DB257000 AG08012XB257000 AG08024DB257000 AD0812HB-A73GP(AD0812HB-A71GP) AG08012UB257000 AG08012MB257000 AG08012HB257000 AG08012LB257000 AG08024LB257000 AG08024HB257000 AD0824UB-A73GP(AD0824UB-A71GP) AD0848UB-A73GP(AD0848UB-A71GP) AD0848VB-A73GP(AD0848VB-A71GP) AG08024MB257000 AD0848HB-A73GP(AD0848HB-A71GP) AG08024UB257000 AD0824XB-A73GP(AD0824XB-A71GP) AD0848XB-A73GP(AD0848XB-A71GP) AD0824HB-A73GP(AD0824HB-A71GP) AD0812XB-A73GP(AD0812XB-A71GP) AD0812UB-A73GP(AD0812UB-A71GP) AD0848UB-A71GL
80*80*32：
AD0812UB-Y53 AD0812UB-Y51(AD0812UB-Y5B) AD0812HB-Y51(AD0812HB-Y5B) AD0824HB-Y51(AD0824HB-Y53) AD0824MB-Y51(AD0824MB-Y53) AD0812MB-Y51(AD0812MB-Y5B) AD0824UB-Y51(AD0824UB-Y53) AD0812LB-Y51(AD0812LB-Y5B) AD0824LB-Y51(AD0824LB-Y53) AD0848UB-Y51(AD0848UB-Y53) AD0848MB-Y51(AD0848MB-Y53) AD08012LB327B00 AD0848LB-Y51(AD0848LB-Y53) AD08024DB327B00 AD0848HB-Y51(AD0848HB-Y53) AD08012DB327B00 AD08012HB327B00 AD08012MB327B00 AD08012XB327B00 AD08024UB327B00 AD08024MB327B00 AD08024XB327B00 AD08024HB327B00 AD08024LB327B00 AD08012UB327B00
80*80*38：
AD0824HB-F71DS(AD0824HB-F7BDS) AD0824HB-F71 AS08048MB389B00 AD0848HB-F71 AD0812HB-F73 AD0812HB-F71 AD0812LB-F71 AD0812UB-F71 AD0812DB-F71 AD0812LB-F71 AD0812MB-F71 AD0824MB-F71 AD0824UB-F71DS(AD0824UB-F7BDS) AD0824XB-F71DS(AD0824XB-F7BDS) AD0812XB-F71DS(AD0812XB-F7BDS) AD0812HB-F71DS(AD0812HB-F7BDS) AD0848HB-F71DS(AD0848HB-F7BDS) AD0824UB-F71 AD0812VB-F71DS(AD0812VB-F7BDS) AD0812UB-F71DS(AD0812UB-F7BDS) AD0848XB-F71DS(AD0848XB-F7BDS) AD08024MB389B00 AD0848UB-F71DS(AD0848UB-F7BDS) AS08048UB389B00 AS08012HB385BB2 AS08024DB389B00 AS08048HB389B00 AS08048LB389B00 AS08012UB389B00 AS08048DB389B00 AS08024HB389B00 AS08024UB389B00 AS08024MB389B00 AS08012LB389B00 AS08012MB389B00 AS08012DB389B00 AS08012HB389B00 AS08024LB389B00 AS08012LB385BB2 AS08012MB385BB2 AD0848UB-F71
80*80*76：
AS08012MB765300 AS08012HB765300 AS08012LB765300 AS08012DB765300 AS08012UB765300
