产品类型:辊道电机
额定电压:380V
起订:1台
供应:5台
发货:1天内
| 产品类型 | 辊道电机 |
|---|---|
| 额定电压 | 380V |
| 额定功率 | 1 |
| 额定转速 | 1 |
| 类型 | 三相异步辊道电动机 |
| 品牌 | 千业牌 |
| 型号 | YG YGA YGB |
| 加工定制 | 是 |
| 外壳颜色 | 蓝色 |

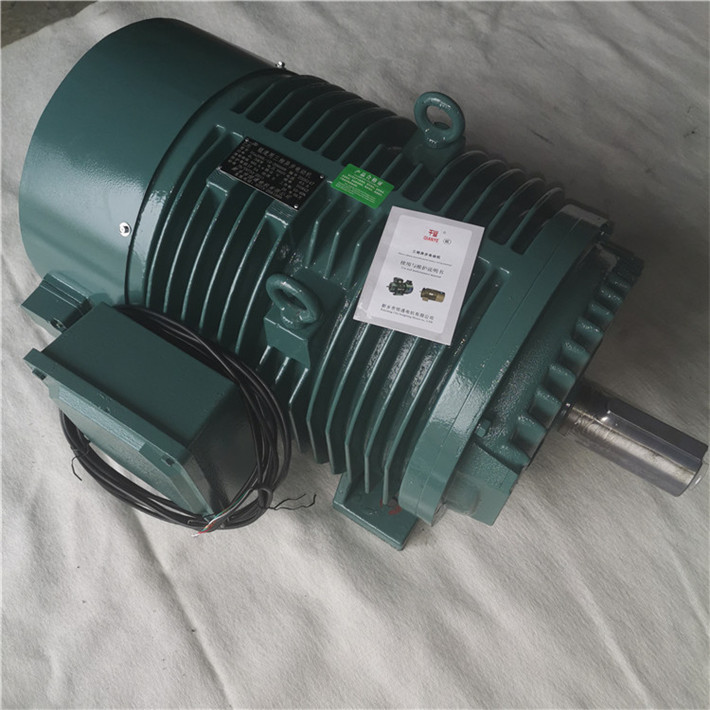

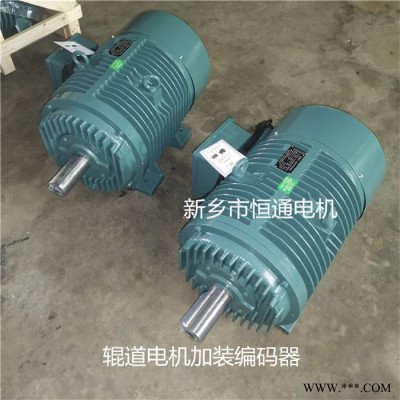

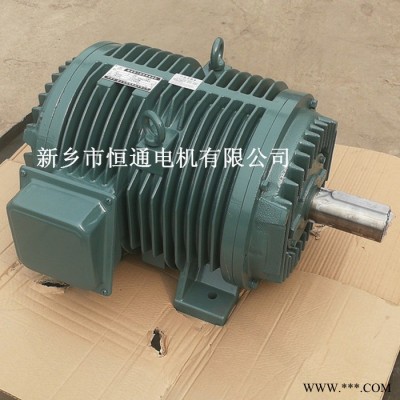

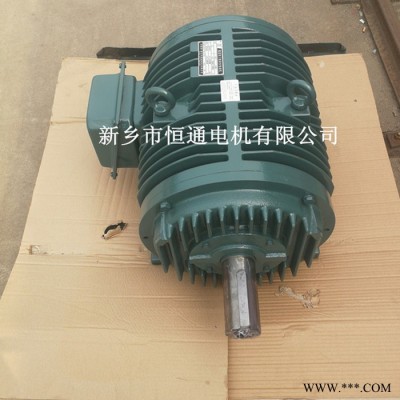

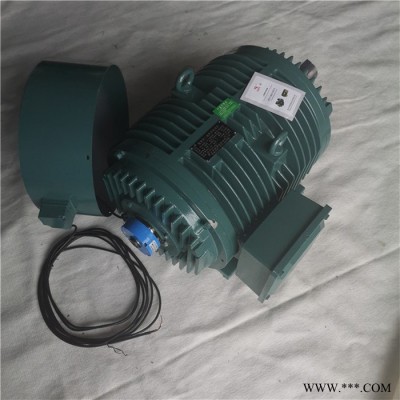

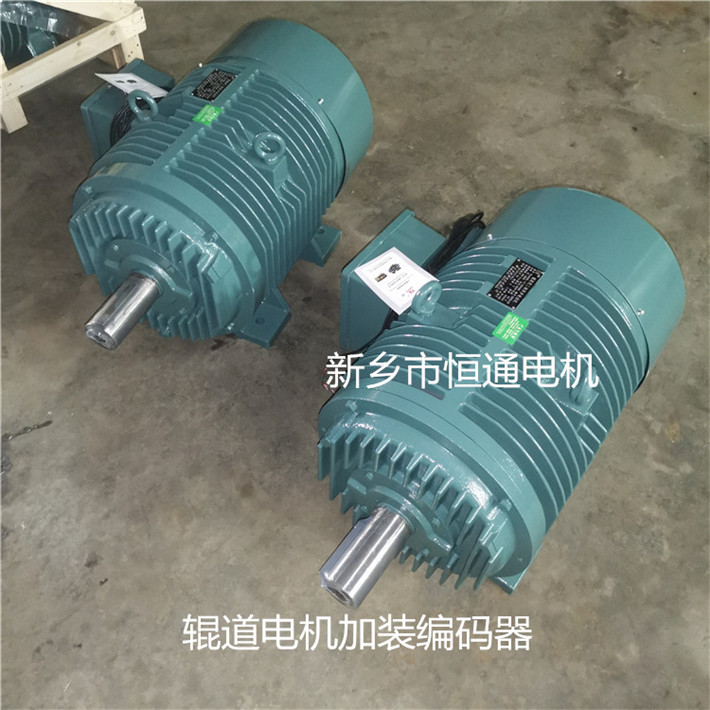

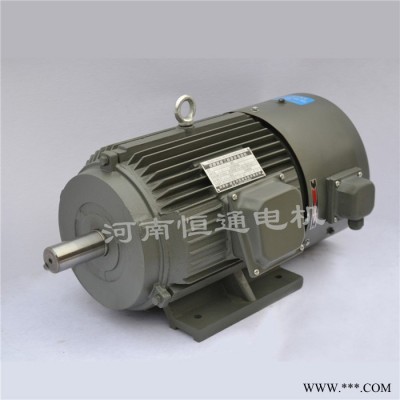

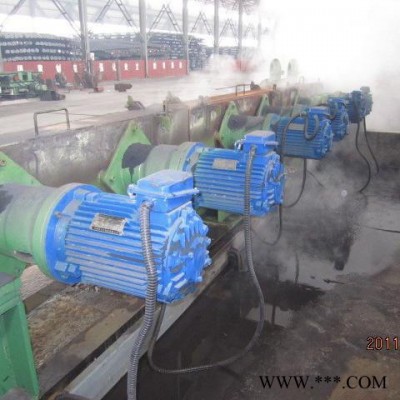

YG系列辊道电机能够在频繁起制动、正反转、反接制动等冲击性载荷和高温、 多灰尘环境的恶劣条件下连续工作，具有较高的过载能力，为轧钢厂工作辊道和运输的专用电机，也可应用于其它机械设备上。 YG系列辊道电机和额定电压为380V，额定频率为50Hz，Y接法，绝缘等级为H级，防护等级为IP54，安装形式为B3、B5、B35、冷却方式为IC0041，电动机可以满压直接启动。 在VVVF控制下，YG系列辊道电机能在5－70Hz范围内正常工作，但其主要性能指标不同于该样本中规定的保证值。 YG系列辊道电机分为两种类型： YGa主要用于工作辊道，工作制为S540%。 YGb主要用于传输辊道，工作制为S1。
1YPG80M1-4 YPG80M2-4 YPG90S-4 YPG90L-4 YPG100L1-4 YPG100L2-4 YPG112M-4 YPG132S-4 YPG132M-4 YPG160M-4 YPG160L-4 YPG180M-4 YPG180L-4 YPG200L1-4 YPG200L2-4 YPG225M-4 YPG250M-4 YPG280S-4 YPG315S-4 YPG315M-4 YPG315L1-4 YPG315L2-4 YPG355M1-4 YPG355M2-4 YPG355L-4YPG80M1-6 YPG80M2-6 YPG90S-6 YPG90L-6 YPG100L-6 YPG112M-6 YPG132S-6 YPG132M1-6 YPG132M2-6 YPG160M-6 YPG160L1-6 YPG160L2-6 YPG180L-6 YPG200L1-6 YPG200L2-6 YPG225M-6 YPG250M-6 YPG280S-6 YPG280M-6 YPG315S-6 YPG315M-6 YPG315L1-6 YPG315L2-6 YPG355M1-6 YPG355M2-6 YPG355L-6YPG80M1-8 YPG80M2-8 YPG90S-8 YPG90L-8 YPG100L1-8 YPG100L2-8 YPG12M-8 YPG132S-8 YPG132M-8 YPG160M1-8 YPG160M2-8 YPG160L-8 YPG180L-8 YPG200L-8 YPG225S-8 YPG225M-8 YPG250M-8 YPG280S-8 YPG280M-8 YPG315S-8 YPG315M-8 YPG315L1-8 YPG315L2-8 YPG355M1-8 YPG355M2-8 YPG355L-8 YGP112L1-6 0.75 YGP112L2-6 1.1 YGP132M1-6 1.5 YGP132M2-6 2.2 YGP160S1-6 3 YGP160S2-6 4 YGP160L1-6 5.5 YGP160L2-6 6.3 YGP180L1-6 7.5 YGP180L2-6 9 YGP200L1-6 11 YGP200L2-6 15 YGP225M1-6 18.5 YGP225M2-6 22 YGP250M-6 25 YGP280S1-6 30 YGP280S2-6 37 YGP280M-6 45 YGP315S1-6 55 YGP315S2-6 63 YGP315M-6 75 YGP355M-6 90 YGP355L-6 110 YGa112L1-4 YGa160S1-8YGa160S2-8YGa160S1-10 YGa160S2-10 YGa160S1-12 YGa160S2-12 YGa160S1-16 YGa160S2-16 YGa180L1-8 YGa180L1-10 YGa180L2-10 YGa180L1-12 YGa225M1-10 YGa225M2-10 YGa225M1-12 YGa225M2-12 YGa225M1-16
YGa225M2-16 YGa225M1-20 YGa225M2-20 YGa180L2-12 YGa180L1-16 YGa180L2-16YGa200L1-10 YGa200L2-10 YGa200L1-12 YGa200L2-12 YGa200L1-16 YGa200L2-16 YGa200L1-20 YGa200L2-20 YGa112L2-4 YGa112L1-6 YGa112L2-6 YGa112L1-8 YGa112L2-8 YGa112L1-10 YGa112L2-10 YGa112L2-12YGa132M1-6 YGa132M2-6 YGa132M1-8 YGa132M2-8 YGa132M1-10 YGa132M2-10 YGa132M1-12 YGa132M2-12
