| 种类 | 接线盒 |
|---|---|
| 应用范围 | 电源 |
| 品牌 | 德国威琅wieland |
| 型号 | 92.050.8453.0 |
| 加工定制 | 否 |

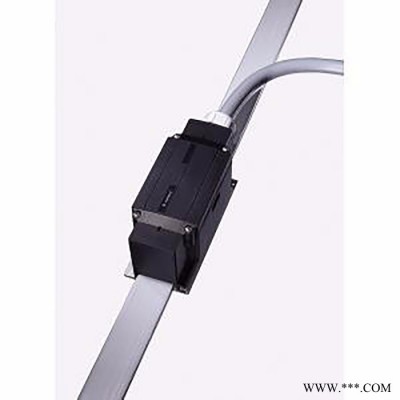

接线盒 GST18I5A SIE F9 SWUC
物料号 92.050.8453.05极电源馈入，250/400V，63A，用于5 x 16 mm2扁平电缆电源，通过使用螺钉连接圆形电缆
总则 额定电压 400 V 额定电流 63 A IP防护等级 IP65 机械编码 否 极标记 L, N, PE, 1, 2 彩色外壳 黑色 可内锁 否 连接数据 Connection cross section stranded max. 16 mm2 终端类型（圆形电缆） 螺钉连接 型号 型号 电源系统 极数 5 相位选择 L1-L3 材料 外壳 聚酰胺 无卤素 是 接触材料 CuZn 绝缘部件连续温度 100 °C 尺寸 长度 200 mm 宽度 91 mm 高度 85 mm Classification ECLASS 8.1 ETIM 5.0 EC002588: 用于即插式建筑安装的扁平电缆 ETIM 4.0 EC002588: 用于即插式建筑安装的扁平电缆| 92.207.3063.3 |
