品牌：赛普
品牌：赛普电气
型号：PG 13.5
起订：100只
供应：10000000只
| 品牌 | 赛普电气 |
|---|---|
| 型号 | PG 13.5 |

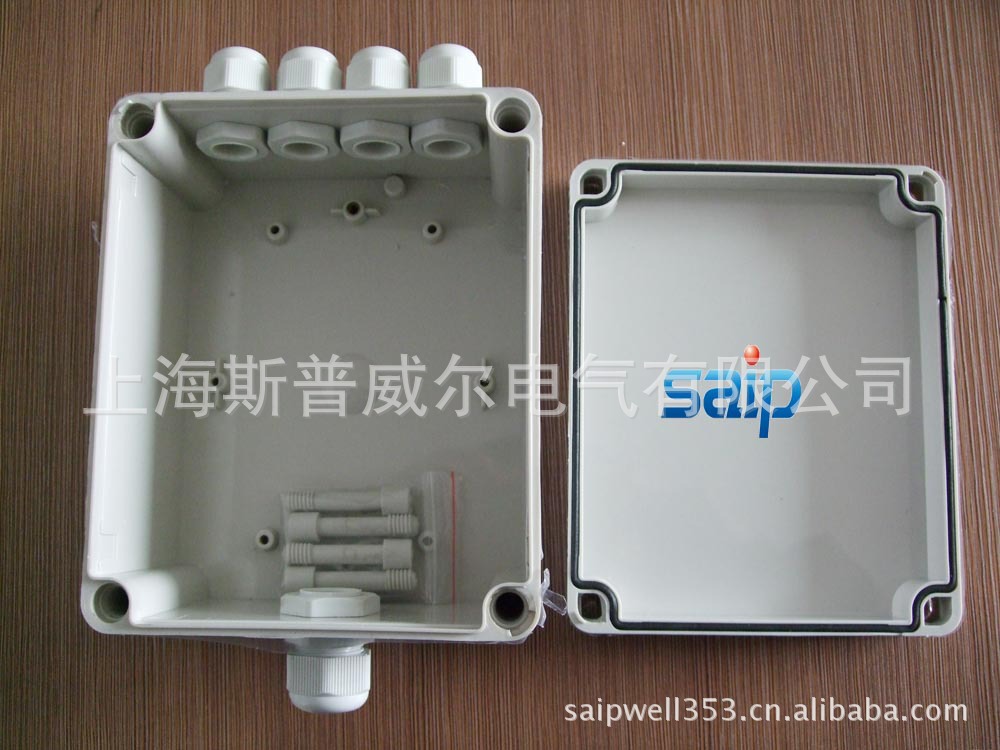

| 适用范围 | 一般机械控制箱、配电缆、机器、电器等电缆固定用。 |
| 适用范围:一般机械控制箱、配电缆、机器、电器等电缆固定用。 |

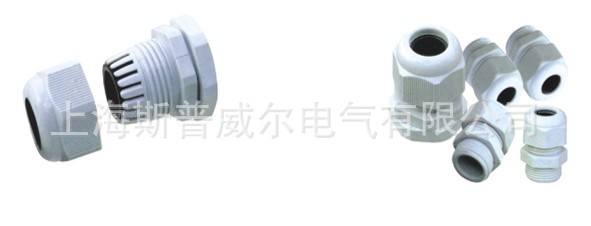

专业生产优质电缆固定头，CABLE GLAND，防水接头，电缆接头，采用UL认证尼龙6生产，本产品已通过CE、SGS、IP68、ROHS认证，可定做各种不同颜色，不同尺寸产品。
特点：
|
 |
材料：尼龙塑料，阻燃VO级(UL94)
密封件：丁晴橡胶(NBR)
防护等级：IP68（使用O型圈的情况下）
耐温范围： 静态-40°C~100°C，短时至120°C；动态-20°C~80°C，短时至100°C
特 点：能有效夹紧电缆并达到防水目的

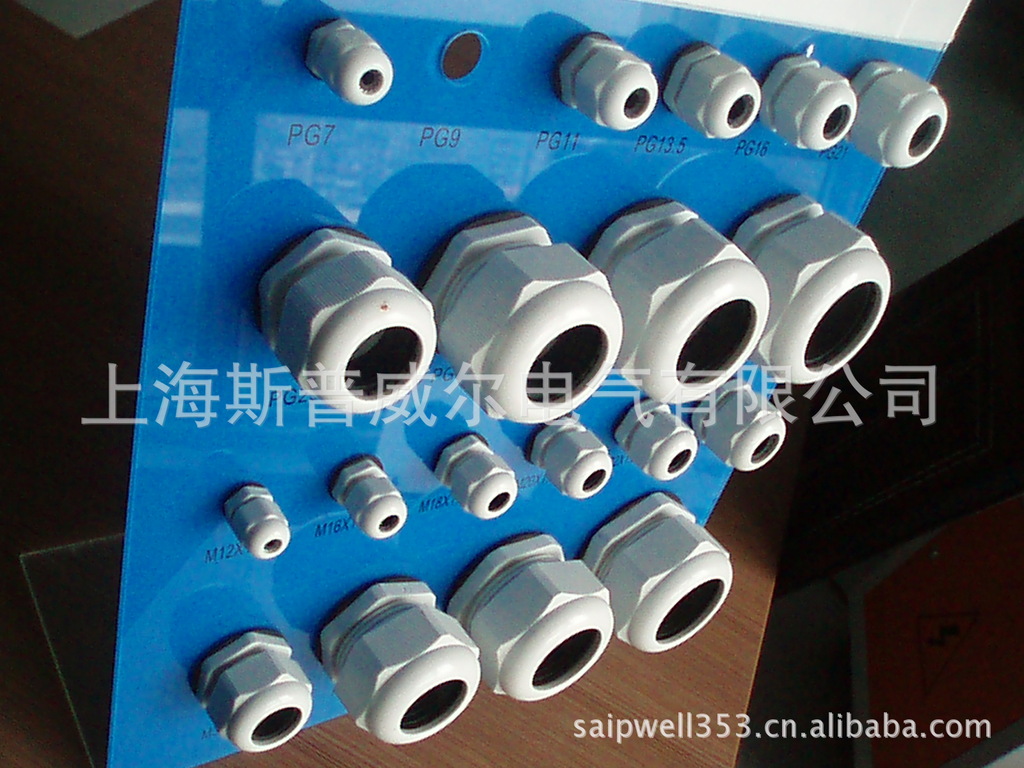

PG德制螺纹
| 型号 | 电缆卡口范围 (mm) | GL螺纹长度 (mm) | H(mm) | AG螺纹外径 (mm) | M.M |
PG7 | 3-6.5 | 8 | 21 | 12.5 | 15 |
PG7 | 2-5 | 8 | 21 | 12.5 | 15 |
PG9 | 4-8 | 8 | 22 | 15.2 | 19 |
PG9 | 2-6 | 8 | 22 | 15.2 | 19 |
PG11 | 5-10 | 8 | 25 | 18.6 | 22 |
PG11 | 3-7 | 8 | 25 | 18.6 | 22 |
PG13.5 | 6-12 | 9 | 17 | 20.4 | 24 |
PG13.5 | 5-9 | 9 | 17 | 20.4 | 24 |
PG16 | 10-14 | 10 | 28 | 22.5 | 27 |
PG16 | 7-12 | 10 | 28 | 22.5 | 27 |
PG21 | 13-18 | 11 | 31 | 28.3 | 33 |
PG21 | 9-16 | 11 | 31 | 28.3 | 33 |
PG29 | 18-25 | 11 | 39 | 37.0 | 42 |
PG29 | 13-20 | 11 | 39 | 37.0 | 42 |
PG36 | 22-32 | 13 | 48 | 47.0 | 53 |
PG36 | 20-26 | 13 | 48 | 47.0 | 53 |
PG42 | 32-38 | 13 | 48 |
| 60 |
PG42 | 25-31 | 13 | 48 |
| 60 |
PG48 | 37-44 | 14 | 49 | 59.3 | 65 |
PG48 | 29-35 | 14 | 49 | 59.3 | 65 |
ISO公制螺纹
| 型号 | 电缆卡口范围 (mm) | GL螺纹长度 (mm) | H(mm) | AG螺纹外径 (mm) | M.M |
M12 * 1.5 | 3-6.5 | 8 | 20 | 12.0 | 15 |
M12 * 1.5 | 2-5 | 8 | 20 | 12.0 | 15 |
M16 * 1.5 | 4-8 | 8 | 22 | 16.0 | 19 |
M16 * 1.5 | 2-6 | 8 | 22 | 16.0 | 19 |
M16 * 1.5 | 5-10 | 8 | 24 | 16.0 | 22 |
M16 * 1.5 | 3-7 | 8 | 24 | 16.0 | 22 |
M20 * 1.5 | 6-12 | 9 | 27 | 20.0 | 24 |
M20 * 1.5 | 5-9 | 9 | 27 | 20.0 | 24 |
M20 * 1.5 | 10-14 | 10 | 28 | 20.0 | 27 |
M20 * 1.5 | 7-12 | 10 | 28 | 20.0 | 27 |
M25 * 1.5 | 13-18 | 11 | 30 | 25.0 | 33 |
M25 * 1.5 | 9-16 | 11 | 30 | 25.0 | 33 |
M32 * 1.5 | 18-25 | 11 | 38 | 32.0 | 42 |
M32 * 1.5 | 13-20 | 11 | 38 | 32.0 | 42 |
M40 * 1.5 | 22-32 | 13 | 45 | 40.0 | 53 |
M40 * 1.5 | 20-26 | 13 | 45 | 40.0 | 53 |
M50 * 1.5 | 32-38 | 13 | 47 | 50.0 | 60 |
M50 * 1.5 | 25-31 | 13 | 47 | 50.0 | 60 |
M63 * 1.5 | 37-44 | 14 | 47 | 63.0 | 65 |
M63 * 1.5 | 29-35 | 14 | 47 | 63.0 | 65 |
NPT美制螺纹
| 型号 | 电缆卡口范围 (mm) | GL螺纹长度(mm) | H(mm) | M.M |
3/8"NPT | 4-8 | 15 | 22 | 22/19 |
3/8"NPT | 2-6 | 15 | 22 | 22/19 |
1/2"NPT | 6-12 | 13 | 27 | 24 |
1/2"NPT | 5-9 | 13 | 27 | 24 |
1/2"NPT | 10-14 | 13 | 28 | 27 |
1/2"NPT | 7-12 | 13 | 28 | 27 |
3/4"NPT | 13-18 | 13 | 30 | 33 |
3/4"NPT | 9-16 | 13 | 30 | 33 |
1"NPT | 18-25 | 19 | 38 | 42 |
1"NPT | 13-20 | 19 | 38 | 42 |
1-1/4"NPT | 18-25 | 16 | 38 | 46/42 |
1-1/4"NPT | 13-20 | 16 | 38 | 46/42 |
1-1/2"NPT | 22-32 | 20 | 45 | 53 |
1-1/2"NPT | 20-26 | 20 | 45 | 53 |
