品牌：欣睿激光
产地：浙江
产品别名：激光焊接机
起订：1台
供应：10000台
发货：7天内
| 产地 | 浙江 |
|---|---|
| 产品别名 | 激光焊接机 |
| 作用对象 | 金属 |
| 作用原理 | 脉冲 |
| 品牌 | 欣睿激光 |
| 型号 | XR-MW400 |
特点: Feature:
● 采用英国进口陶瓷聚光腔体，耐腐蚀、耐高温、寿命（8-10）年，氙灯寿命800万次以上。
imported ceramic condenser chamber, corrosion resistance, high temperature resistance, life expectancy (8-10), xenon lamp life 8 million times.
● 生产效率高,焊接速度快,可实现流水线自动化批量生产。
The high production efficiency, high welding speed, can realize the automation of production line
● 激光头可旋转360度，光路部份可转动360度，上下电动升降前后推动适合大、中、小型模具的修补。
The laser head can rotate 360 degrees, and the light path part can rotate 360 degrees, and the upper and lower electric lifting drive is suitable for the repair of large, middle and small mold.
● 工作台可配定制夹具。
Workbench can be equipped with custom fixture.
适用材料: Applications

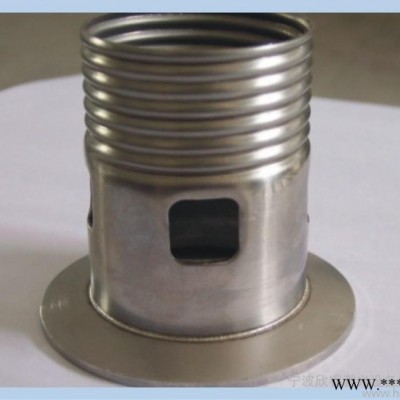

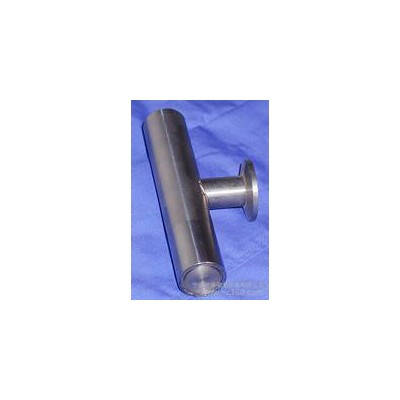

适用于水壶、真空杯、不锈钢碗、门把手、电器配件、滤清器、油嘴、不锈钢制品、高尔夫球头、锌合金工艺品等焊接；可焊接图形有：点、直线、圆、方形或由AUTOCAD软件绘制的任意图形，可焊接立体轨迹。
It is applicable for welding in the kettle, vacuum cup, stainless steel bowl, the handle of the door, electric appliance fittings, filter, glib, stainless steel products, golf head, zinc alloy products such as; welding graphics: point, line, circle, square or drawn by AutoCAD software arbitrary graphics, welding three-dimensional trajectory.
技术参数technical parameter
|
| XR-AW200 | XR-AW300 | XR-AW400 | XR-AW500 | XR-AW600 | ||||
| 最大激光功率 Max. laser output power | 200W | 300W | 400W | 500W | 600W | ||||
| 激光波长 Laser wavelength | 1064nm | ||||||||
| 激光工作性质 Laser working medium | ND:YAG | ||||||||
| 脉冲频率 Pulse frequency | ≤100KHz | ||||||||
| 脉冲宽度 Pulse width | ≤20ms | ||||||||
| 瞄准定位方式 Positioning | 显微镜、CCD、红光(选配) Red light or CCD | ||||||||
| 工作台行程 Worktable moving range | 200x200mm至1200x1200mm(可选) 200×200mm to 1200×1200mm(optional) | ||||||||
| 整机耗电功率 Power consumption | 8KW | 10KW | 12KW | 15KW | 18KW | ||||
| 电力需求Power supply
| AC220V±10%/50Hz | 三相AC380V /50Hz Three phase | 三相AC380V /50Hz Three phase | ||||||
| 冷却系统 Cooling system | 水冷water cooling | ||||||||
