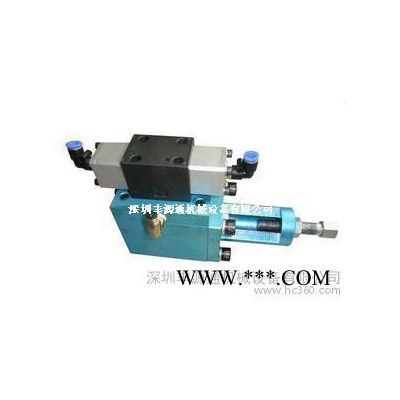

| 概述 | Outline | (1) 定量阀是高精度流体计量、定量吐出阀，为容积
式原理定量阀门。
(2) 定量**，调量方便，控制简单。
(3) 广泛应用于电子、机械、制药、汽车、船舶、食
品、化妆品等行业。 |
| (1) Quantitative precision fluid metering valve,
quantitative spit valves, Its Volumetric quantification
principle quantitative valves.
(2) Quantitatively accurate, adjust the
amount of convenient, simple control.
(3) Widely used in electronics, machinery,
pharmaceuticals, automotive,
Ship, food, cosmetics and other industries. |
| | | | | 特点 | Feature | (1) 适用各种中、高、超高粘度介质的定量加注。
(2) 适用各种柱塞泵、螺杆泵、齿轮泵等供料系统。
(3) 加注量不受压力波动影响。
(4) 二位五通换向阀即可控制其工作。 |
| (1) For a variety of medium, high and ultra-high
viscosity media quantitative filling.
(2) For a variety of piston pumps, screw pumps,
gear pumps and other feeding system.
(3) filling quantityUnaffected by pressure fluctuations.
(4) Two five-way valve to control their work to do. |
|
定量范围 | 精度精度 | 进出口 | 耐压 | 使用压力 | 使用温度 | 控制气压 | 控制口 | Weight range | Accuracy | import and
Export | Pressure | Use of pressure | Use temperature | Controlled
atmosphere | Control
port | 3~150cc | ±2% | G1/4〃 | 20Mpa | 6~15Mpa | -10~40° | 0.3~0.8Mpa | G1/8〃 |
|
|
