| 产地 | 河南 |
|---|---|
| 产品认证 | CNEX |
| 额定电流 | 63A |
| 使用寿命 | 10年 |
| 售后服务 | 一年保修 |
| 外形尺寸 | 定制 |
| 壳体防护等级 | IP66 |
| 经营模式 | 自产自销 |
| 品牌 | 南阳宏一 |

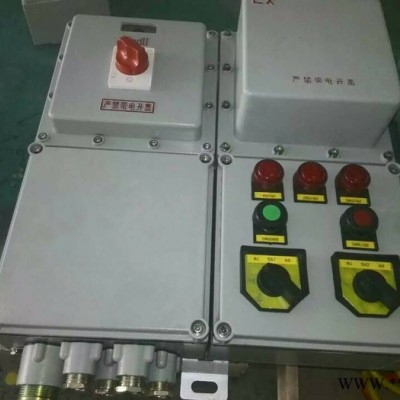

| 型号 | BXD(M)51系列防爆照明（动力）配电箱 |
一、适用范围
??**性气体环境：1区、2区
??◆场所中危险气体或蒸气：IIA、IIB、IIC
??◆温度组别：T1～T6
??◆户内、户外
??◆Explosive gas atmospheres:Zone 1&2
??◆Dangerous gases or vapors zone:IIA、IIB、IIC
??◆Temperature Classes:T1～T6
??◆Indoor and outdoor
二、型号含义 Type designation
三、电气原理 Electrical principle chart
四、产品特点
??◆铸铝合金或钢板焊接外壳，表面喷塑
??◆内装C65、NC100H、DZ47等小型断路器
??◆具有过载、短路保护功能
??◆输入：3P+N+PE，输出：3P+N+PE或1P+N+PE
??◆可根据用户要求特制
??◆可钢管或电缆布线
Features
??◆Enclosure is made of casting aluminum alloy,surface is sprayed with plastic
??◆Built-in small breaker such as C65N(H)-C、C65N(H)-D、NC100Hetc
??◆With overload and short circuit protect function
??◆C65N(H)-C is proferred for light power distribution system and C65N(H)-1 for power distribution system
??◆Inlet,Outlet compartment and component component are independent from each other
??◆Input,3P+N+PE,out:3P+N+PE or 1P+N+PE
??◆For user's requirement,it could be special one
??◆Wiring with conduit or cable.For cable,it should be fitted with explosion protected cable seal gland
