| 应用范围 | 控制 电流 |
| 产品系列 | 继电器 |
| 触点负载 | 中功率 |
| 触点切换电流 | 15A |
| 触点切换电压 | 12V |
| 触点形式 | 常开型 |
| 额定电流 | 20-35A |
| 额定电压 | 12V |
| 防护特征 | 密封式 |
| 线圈电源 | DC12V |
| 线圈功率 | 0.36W |
| 品牌 | 海拉 |

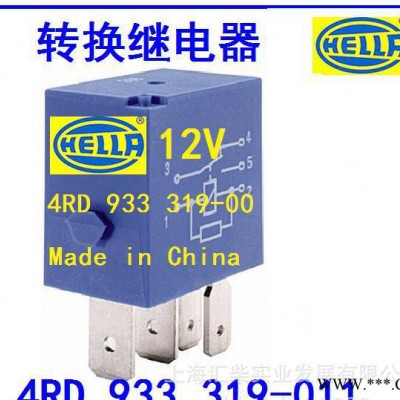

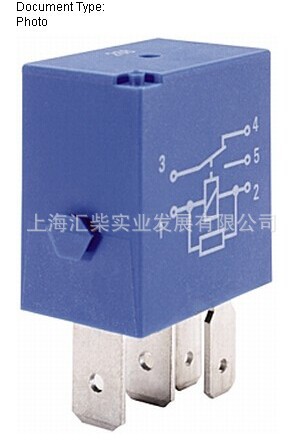

| 型号 | 4RD 933 319-007 |
| HELLA | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() | Relay, main current | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | 4RD 933 319-007 | ![]() | Relay, main current | | ![]() | ![]() | ![]() | ![]() |

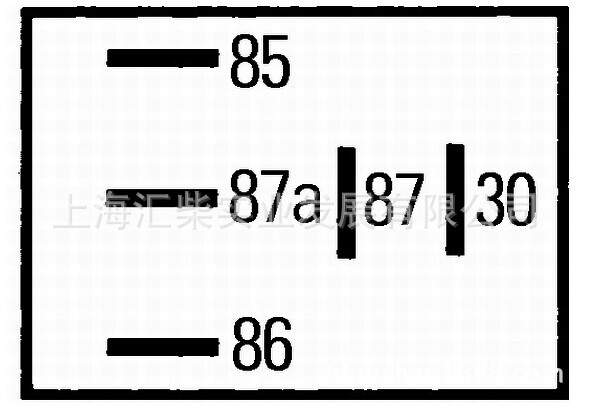

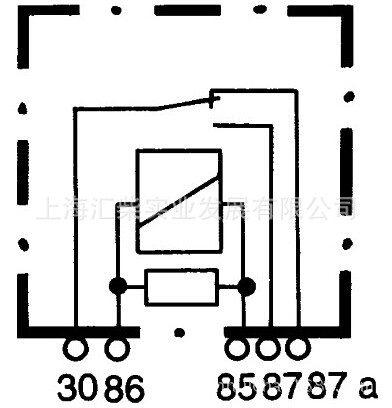

![]() | ![]() | | Supplementary Article/Supplementary Info 2: with lock tab, with resistance, Capacity at 12V: 20/35A, Supplementary Article/Supplementary Info: without holder, Colour: Blue, Inductive Load: 15 A, 30 A, Capacitive Load: 15 A, 25 A, Rated Voltage: 12 V, Ohmic Load: 20 A, 35 A, Number of Poles: 5, Wiring Diagramme: W2, Combi Switch Function: Directional Contact, Prot.type (IP Code): 54, Plug-type ID: C1, Temp. Range: -40°C / +125°C °C | ![]() |
| ![]() | ![]() | ![]() |
| ![]() |
![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | 4RD 933 319-011 | ![]() | Relay, main current | | ![]() | ![]() | ![]() | ![]() |
![]() | ![]() | | Supplementary Article/Supplementary Info 2: with resistance, Capacity at 24V: 20A / 10A, Supplementary Article/Supplementary Info: without holder, Colour: Black, Rated Voltage: 24 V, Number of Poles: 5, Wiring Diagramme: W2, Combi Switch Function: Selector Switch, Prot.type (IP Code): 54, Plug-type ID: C1, Temp. Range: -40°C...+125°C °C | ![]() |
| ![]() | ![]() | ![]() |
| ![]() |
![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | 4RD 933 319-017 | ![]() | Relay, main current | | ![]() | ![]() | ![]() | ![]() |
![]() | ![]() | | Supplementary Article/Supplementary Info 2: with resistance, Capacity at 24V: 20A / 10A, Supplementary Article/Supplementary Info: without holder, Colour: Black, Rated Voltage: 24 V, Number of Poles: 5, Wiring Diagramme: W2, Combi Switch Function: Selector Switch, Prot.type (IP Code): 54, Plug-type ID: C1, Temp. Range: -40°C...+125°C °C | ![]() |
|
|
*************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************
