| 加工定制 | 是 |
|---|---|
| 类别 | 齿轮减速机 |
| 齿轮类型 | 斜齿轮减速机 |
| 安装形式 | 6W-3700W小型减速电机,调速电机,直角减速电机,直流减速电机,齿轮减速马达,变频器 |
| 布局形式 | 6W-3700W小型减速电机,调速电机,直角减速电机,直流减速电机,齿轮减速马达,变频器 |
| 用途 | 减速机 |
| 输入转速 | 10-1450（rpm） |
| 额定功率 | 6W-3700W（kw） |
| 输出转速范围 | 0.1-1450（rpm） |
| 许用扭矩 | 0.1-2000（N.m） |
| 齿面硬度 | 硬齿面 |
| 品牌 | 台湾STS成钢 |
| 型号 | 6W-3700W小型减速电机,调速电机,直角减速电机,直流减速电机,齿轮减速马达,变频器 |

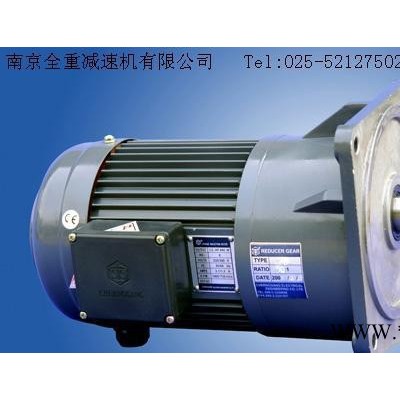

齿轮减速马达
单相功率：0.1KW-1.5KW
单相电压：110V-220V
三相功率：0.1KW-3.7KW
三相电压：220V-380V-440V
减 速 比：1/3-1/3600
输出转速：0.3-486RPM/Min
输出扭矩：0.1-1500N.m
产品简介：
1、强韧坚固：内部材质采用特殊热处理合金钢,结构坚实、耐磨、耐用、寿命长.
2、性能优越：采用西德精密齿轮加工机械，齿轮吻合密契,振动小、低噪音.

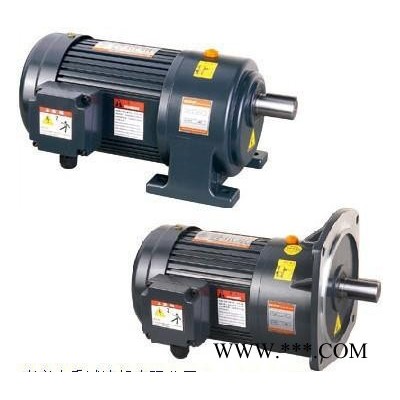

3、卧式具有坚固的底座便于安装、立式采用法兰安装便于与机器结合.
4、体积小、重量轻、静音运转、可附电磁制动.
部分型号如下：
CH1/CV1 CH2/CV2 CH3/CV3 CH4/CV4 CH5/CV5 CH6/CV6
CH100-20S CH100-25A CH100-60S CH100-90S CH100-150S CH100-1800S
CH200-5A CH200-10S CH200-30S CH200-50SZ CH200-75S CH200-100S
CH400-10S CH400-20SZ CH400-30A CH400-50S CH400-100A CH400-180S
CH750-10S CH750-30S CH750-60S CH750-80S CH750-140S CH750-160S
CH1500-3S CH1500-10A CH1500-30SZ CH1500-50S CH1500-100S CH1500-180S
CH2200-5S CH2200-15SZ CH2200-30S CH2200-50S CH2200-75S CH2200-160S
CH3700-10S CH3700-20S CH3700-30S CH3700-40S CH3700-50S CH3700-60S
附电磁制动：
CH200-20SB CH400-40AB CH400-60SB CH400-80SB CH400-100AB CH400-160SB
CH750-10SB CH750-20SB CH750-30AB CH750-40SB CH750-60SB CH750-90SB
CH1500-10AB CH1500-60SB CH2200-30SB CH2200-60SB CH3700-30SB CH3700-60SB
部分型号如下：
CH/CV100-3-50S-18 CH/CV100-60-100S-22 CH/CV-110-200S-22 CH/CV200-3-10S-18
CH/CV200-15-30S-22 CH/CV200-40-90S-22 CH/CV400-3-10S-22 CH/CV400-15-30S-28
CH/CV400-40-90S-28 CH/CV400-100-200S-32 CH/CV750-3-10S-28 CH/CV750-15-25S-28
CH/CV750-30-60S-32 CH/CV750-70-120S-32 CH/CV750-125-200S-40 CH/CV1500-3-10S-32
CH/CV1500-15-30S-32 CH/CV1500-40-60S-40 CH/CV1500-70-100S-40 CH/CV2200-3-10S-40S-40
CH/CV2200-15-40S-40 CH/CV2200-50-100S-50 CH/CV3700-3-10S-40 CH/CV3700-15-25S-50
CH/CV3700-30-60S
