| 产品系列 | FR-A740 |
|---|---|
| 电压等级 | 65 |
| 电源相数 | 多相 |
| 额定电压 | 220V |
| 功率范围 | 18.5 |
| 频率范围 | 50 |
| 营销方式 | 代理 |
| 品牌 | MITSUBISHI/三菱 |
| 型号 | FR-A740-18.5K |
销售工程师：江先生
QQ：617907797
手机：18225512443
矢量控制型]-
FR-A720-0.4K 0.4KW 3.0A
FR-A720-0.75K 0.75KW 5.0A
FR-A720-1.5K 1.5KW 8.0A
FR-A720-2.2K 2.2KW 11A
FR-A720-3.7K 3.7KW 17.5A
FR-A720-5.5K 5.5KW 24A
FR-A720-7.5K 7.5KW 33A
FR-A720-11K 11KW 46A
FR-A720-15K 15KW 61A
FR-A720-18.5K 18.5KW 76A
FR-A720-22K 22KW 90A
FR-A720-30K 30KW 115A
FR-A720-37K 37KW 145A
FR-A720-45K 45KW 175A
FR-A720-55K 55KW 215A
FR-A720-75K 75KW 288A(245A)
FR-A720-90K 90KW 346A(294A) *
-[FR-F720 系列, 3 相 200V 50Hz 等級, 節能通用型]-
FR-F720-0.75K 0.75KW 4.2A(3.6A) *
FR-F720-1.5K 1.5KW 7.0A(6.0A) *2
FR-F720-2.2K 2.2KW 9.6A(8.2A) *2
FR-F720-3.7K 3.7KW 15.2A(13.0A) *2
FR-F720-5.5K 5.5KW 23.0A(20.0A) *2
FR-F720-7.5K 7.5KW 31.0A(26.0A) *2
FR-F720-11K 11KW 45.0A(38.0A) *2
FR-F720-15K 15KW 58.0A(49.0A) *2
FR-F720-18.5K 18.5KW 70.0A(60.0A) *2
FR-F720-22K 22KW 85.0A(72.0A) *2
FR-F720-30K 30KW 114.0A(97.0A) *2
FR-F720-37K 37KW 140.0A(119.0A) *2
FR-F720-45K 45KW 170.0A(145.0A)*2
FR-F720-55K 55KW 212.0A(180.0A) *2
FR-F720-75K 75KW 288.0A(244.0A) *2
FR-F720-90K 90KW 346.0A(294.0A) *2
FR-F720-110K 110KW 432.0A(367.0A) *2
*1 75K以上，Pr.72 参数 PWM频率选择2KHz 以上时的额定电流为（）内值。
*2 PWM载波频率选择3KHz 以上时，额定电流为（）内值。
-[FR-E740 系列, 3相 380V 50HZ 等级, 轻巧通用型 (150% 60秒过载能力)]-
FR-E740-0.4K-CHT 0.4KW 1.6A
FR-E740-0.75K-CHT 0.75KW 2.6A
FR-E740-1.5K-CHT 1.5KW 4.0A
FR-E740-2.2K-CHT 2.2KW 6.0A
FR-E740-3.7K-CHT 3.7KW 9.5A
FR-E740-5.5K-CHT 5.5KW 12A
FR-E740-7.5K-CHT 7.5KW 17A
FR-E740-11K-CHT 11KW 23A
FR-E740-15K-CHT 15KW 30A
-[FR-E720S 系列, 单相 220V 50HZ 等级, 轻巧通用型 (150% 60秒过载能力)]-
FR-E720S-0.4K-CHT 0.4KW 2.5A
FR-E720S-0.75K-CHT 0.75KW 4.0A
FR-E720S-1.5K-CHT 1.5KW 7.0A
FR-E720S-2.2K-CHT 2.2KW 10A
-[FR-E720 系列, 3相 220V 50HZ 等级, 轻巧通用型 (150% 60秒过载能力)]-
FR-E720-0.4K 0.4KW 3A
FR-E720-0.75K 0.75KW 5A
FR-E720-1.5K 1.5KW 8A
FR-E720-2.2K 2.2KW 11A
FR-E720-3.7K 3.7KW 17.5A
FR-E720-5.5K 5.5KW 24A
FR-E720-7.5K 7.5KW 33A
FR-E720-11K 11KW 47A
FR-E720-15K 15KW 60A
-[FR-D740 系列, 3相 380V 50HZ 等级, 简易型 (150% 60秒过载能力)]-
FR-D740-0.4K-CHT 0.4KW 1.2A
FR-D740-0.75K-CHT 0.75KW 2.2A
FR-D740-1.5K-CHT 1.5KW 3.6A
FR-D740-3.7K-CHT 3.7KW 8.0A
FR-D740-5.5K-CHT 5.5KW 12.0A
FR-D740-7.5K-CHT 7.5KW 16.0A
-[FR-D720S 系列, 单相220V 50HZ 等级, 简易型 (150% 60秒过载能力)]-
FR-D720S-0.4K-CHT 0.4KW 2.5A
FR-D720S-0.75K-CHT 0.75KW 4.2A
FR-D720S-1.5K-CHT 1.5KW 7.0A
FR-D720S-2.2K-CHT 10A
-[FR-D720系列, 3相 220V 50HZ 等级, 简易型 (150% 60秒过载能力)]-
FR-D720-0.4K 0.4KW 2.5A
FR-D720-0.75K 0.75KW 4.1A 1
FR-D720-1.5K 1.5KW 7.0A
FR-D720-2.2K 2.2KW 10A 2
FR-D720-3.7K 3.7KW 16.5A
FR-D720-5.5K 5.5KW 23.8A
FR-D720-7.5K 7.5KW 31.8A
-[FR-F740 系列, 3 相 380V 50Hz 等級, 節能通用型]-
FR-F740-0.75K-CHT [ ] 0.75 2.3A 0.75 2.1A
FR-F740-1.5K-CHT [ ] 1.5 3.8A 1.5 3.5A
FR-F740-2.2K-CHT [ ] 2.2 5.2A 2.2 4.8A
FR-F740-3.7K-CHT [ ] 3.7 8.3A 3.7 7.6A
FR-F740-5.5K-CHT [ ] 5.5 12.6A 5.5 11.5A
FR-F740-7.5K-CHT [ ] 7.5 17A 7.5 16A
FR-F740-11K-CHT [ ] 11 25A 11 23A
FR-F740-15K-CHT [ ] 15 31A 15 29A
FR-F740-18.5K-CHT [ ] 18.5 38A 18.5 35A
FR-F740-22K-CHT [ ] 22 47A 22 43A
FR-F740-30K-CHT [ ] 30 62A 30 57A
FR-F740-37K-CHT [ ] 37 77A 37 70A
FR-F740-45K-CHT [ ] 45 93A 45 85A
FR-F740-55K-CHT [ ] 55 116A 55 106A
FR-F740-S75K-CHT 75 144A
FR-F740-S90K-CHT 90 180A 75 144A
FR-F740-S110K-CHT 110 216A 90 180A
FR-F740-S132K-CHT 132 260A 110 216A
FR-F740-S160K-CHT 160 325A 132 260A
FR-F740-S185K-CHT 185 361A 160 325A
FR-F740-S220K-CHT 220 432A 185 361A
FR-F740-S250K-CHT 250 481A 220 432A
FR-F740-S280K-CHT 280 547A 250 481A
FR-F740-S315K-CHT 315 610A 280 547A
FR-F740-S355K-CHT 355 683A 315 610A
FR-F740-S400K-CHT 400 770A 355 683A
FR-F740-S450K-CHT 450 866A 400 770A
FR-F740-S500K-CHT 500 962A 450 866A
FR-F740-S560K-CHT 560 1094A 500 962A
FR-F740-S630K-CHT 630 1212A 560 1094A
[变频器配件]
型号内容单价 （RMB) 型号内容单价 （RMB)
-[配件]- -[共直流母线变流器]-
FR-PU07 700系列操作面板?? FR-CV-H7.5K 7.5KW 或以下 1 6,430
FR-PU07BB-L 700系列带电池组操作面板FR-CV-H11K 11KW 1 7,420
FR-ADP FR-PU07 连接适配器FR-CV-H15K 15KW 1 9,910
FR-CB201 1 米操作面板连接电缆FR-CV-H22K 22KW 3 1,860
FR-CB203 3米 操作面板连接电缆FR-CV-H30K 30KW 4 0,200
FR-CB205 5 米操作面板连接电缆FR-CV-H37K 37KW 4 9,780
FR-CV-H55K 45KW, 55KW
-[700系列专用内置选件]- FR-CVL-H7.5K 电抗器(配FR-CV-H7.5K)
FR-A7AP 编码器反馈，主轴定向，定位FR-CVL-H11K 电抗器(配FR-CV-H11K)
FR-A7PS 编码器12VDC电源FR-CVL-H15K 电抗器(配FR-CV-H15K)
FR-A7AR 继电器输出FR-CVL-H22K 电抗器(配FR-CV-H22K)
FR-A7AX 16位数字输入FR-CVL-H30K 电抗器(配FR-CV-H30K)
FR-A7AY 数字输出及扩展模拟量输出FR-CVL-H37K 电抗器(配FR-CV-H37K)
FR-A7NC CC-link 通讯卡FR-CVL-H55K 电抗器(配FR-CV-H55K)
FR-A7ND Device Net 通讯卡
FR-A7NL LonWORKS 通讯卡-[交流电抗器 380V 等级]-
FR-A7NS SSC NETIII 通讯卡FR-HAL-H0.4K 0.4KW
FR-A7NM Modbus 通讯卡FR-HAL-H0.75K 0.75KW
FR-A7NP Profibus-DP 通讯卡FR-HAL-H1.5K 1.5KW
FR-HAL-H2.2K 2.2KW
-[E700系列专用内置选件]- FR-HAL-H3.7K 3.7KW
FR-PA07 E700 系列操作面板FR-HAL-H5.5K 5.5KW
FR-A7AR E KIT-C 继电器输出FR-HAL-H7.5K 7.5KW
FR-A7AX E KIT-C 16位数字输入FR-HAL-H11K 11KW 2
FR-A7AY E KIT-C 数字输出及扩展模拟量输出FR-HAL-H15K 15KW
FR-A7NC E KIT-C CC-link 通讯卡FR-HAL-H18.5K 18.5KW
FR-A7ND E KIT-C Device Net 通讯卡FR-HAL-H22K 22KW
FR-A7NL E KIT-C LonWORKS 通讯卡FR-HAL-H30K 30KW
FR-A7NP E KIT-C Profibus-DP 通讯卡FR-HAL-H37K 37KW
FR-E7TR 两路 EIA-485 (RS-485) 接口卡FR-HAL-H45K 45KW
E KIT 选件盖板FR-HAL-H55K 55KW
FR-HAL-H75K 75KW
-[滤波器]- FR-HAL-H110K 110KW
FR-BIF-H 无线电噪音滤波器FR-HAL-H185K 132KW-185KW
FR-BSF01 3.7KW 及以下线噪音滤波器FR-HAL-H280K 220KW-280KW
FR-BLF 5.5KW 及以上线噪音滤波器FR-HAL-H355K 315KW-355KW
FR-HAL-H560K 400KW-560KW 7
-[380V 等级高频制动电阻]-
FR-ABR-H0.4K 0.4KW 200
FR-ABR-H0.75K 0.75KW ?-[直流电抗器 380V 等级]-
FR-ABR-H1.5K 1.5KW 2 FR-HEL-H0.4K 0.4KW
FR-ABR-H2.2K 2.2KW 390 FR-HEL-H0.75K 0.75KW 980
FR-ABR-H3.7K 3.7KW 490 FR-HEL-H1.5K 1.5KW 1,100
FR-ABR-H5.5K 5.5KW 590 FR-HEL-H2.2K 2.2KW 1,250
FR-ABR-H7.5K 7.5KW 980 FR-HEL-H3.7K 3.7KW 1,330
FR-ABR-H11K 11KW 1,970 FR-HEL-H5.5K 5.5KW 1,610
FR-ABR-H15K 15KW 2,470 FR-HEL-H7.5K 7.5KW 1,960
FR-ABR-H22K 18.5KW-22KW 3,450 FR-HEL-H11K 11KW 1,700
FR-HEL-H15K 15KW 2,020
-[制动单元(BU) 及制动电阻(BR)]- FR-HEL-H18.5K 18.5KW 3,330
FR-BU2-H7.5K 7.5KW 3,160 FR-HEL-H22K 22KW 3,690
FR-BU2-H15K 11KW/15KW 4,550 FR-HEL-H30K 30KW 4,950
FR-BU2-H30K 18.5KW-30KW 5,250 FR-HEL-H37K 37KW 5,100
FR-BU2-H55K 37KW-55KW 5,680 FR-HEL-H45K 45KW 6,670
FR-BU2-H75K BU >= 75KW 7,690 FR-HEL-H55K 55KW 7,060
FR-BR-H15K 配 FR-BU2-H15K 3,800
FR-BR-H30K 配 FR-BU2-H30K 7,380
FR-BR-H55K 配 FR-BU2-H55K 11,070
“
三菱变频器
A700系列概述：
功率范围：0.4~500KW?????? 闭环时可进行高精度的转矩/速度/位置控制
内置PLC功能（特殊型号）? 无传感器矢量控制可实现转矩/速度控制
使用长寿命元器件，内置EMC虑波器
强大的网络通讯功能，支持DEVICENET ,PROFIBUS-DP,MODBUS等协议。
A740系列:FR-A740-0.4K? FR-A740-0.75K? FR-A740-1.5K FR-A740-2.2K FR-A740-3.7K?? FR-A740-5.5K? FR-A740-7.5K?? FR-A740-11K FR-A740-15K
FR-A740-18.5K? FR-A740-22K?? FR-A740-30K? FR-A740-37K? FR-A740-45K
FR-A740-55K-CHT? FR-A740-75K-CHT FR-A740-90K-CHT FR-A740-110K-CHT
FR-A740-132K-CHT FR-A740-160K-CHT FR-A740-185K-CHT FR-A740-220K-CHT FR-A740-250K-CHT FR-A740-280K-CHT FR-A740-315K-CHT FR-A740-355K-CH FR-A740-400K-CHT FR-A740-450K-CHT FR-A740-500K-CHT
A720 系列：FR-A720-0.4K? FR-A720-0.75K? FR-A720-1.5K? FR-A720-2.2K
FR-A720-3.7K? FR-A720-5.5K? FR-A720-7.5K? FR-A720-11K
D700系列概述：
0.4~3.7KW(3相380V,FR-D740系列) 0.1-3.7KW(3相220V,FR0D720系列)
0.4~1.5KW(单相220V,FR-D720S系列)
内置RS485通信口，柔性PWM,实现更低噪音运行
通用磁通矢量控制，1HZ时150转矩输出，采用长寿命元器件，内置MODBUS-RTU协议，制动晶体管扩充PID,三角波功能，带安全停止功能。
D740系列：FR-D740-0.4K? FR-D740-0.75K? FR-D740-1.5K? FR-D740-2.2K
FR-D740-3.7K? FR-D740-5.5K?? FR-D740-7.5K
D720系列：FR-D720-0.4K? FR-D720-0.75K? FR-D720-1.5K? FR-D720-2.2K
FR-D720-3.7K? FR-D720-5.5K? FR-D720-7.5K
D720S系列：FR-D720S-0.4K? FR-D720S-0.75K? FR-D720S-1.5K? FR-D720S-2.2K

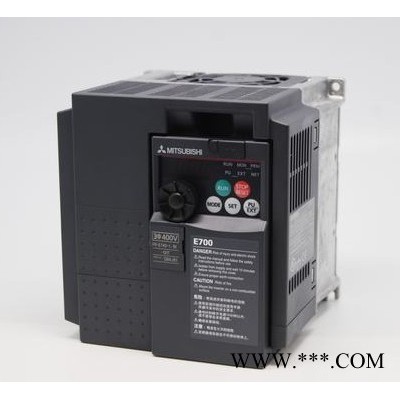

E700系列概述：
容量：0.1~7.5KW???? 输出频率:0.2-400hz精度0.01?? 低速1HZ,可实现150的高转矩
可外接回生刹车电阻 可安心使用于升降用途上 高应答电流限制机能，大幅减少电流产生之跳机 ，额定输出电流提升，8国语言的操作键盘 标准配备RS-485通信介面，全容量可连接直流电抗器，达到抑制高谐波的功能，三菱**开发之：SOFT-PWM控制，可抑制噪音，杂讯在**小限度，PID控制技能，备有NEMA1构造（选用配备），IP40构造
FR-E720系列：FR-E720-0.4K? FR-E720-0.75K? FR-E720-1.5K? FR-E720-2.2K
FR-E720-3.7K? FR-E720-5.5K? FR-E720-7.5K
FR-E740系列：FR-E740-0.4K? FR-E740-0.75K? FR-E740-1.5K FR-E740-2.2K FR-E740-3.7K? FR-E740-5.5K? FR-E740-7.5K? FR-E740-11K? FR-E740-15K
F700系列概述：
功率范围：0.75-630KW 内置独立的RS485通讯口 简易磁通矢量控制方式，实现3HZ时输出转矩达120 使用长寿命元器件? 采用**励磁控制方式，实现更高节能运行，内置噪声滤波器，内置PID,变频器/工频切换和可以实现多泵运行功能，带有节能监控功能，节能效果一目了然
F720系列：FR-F720-0.75K? FR-F720-1.5K? FR-F720-2.2K? FR-F720-3.7K FR-F720-5.5K
FR-F720-7.5K? FR-F720-11K? FR-F720-15K? FR-F720-18.5K FR-F720-22K
FR-F720-30K?? FR-F720-37K? FR-F720-45K? FR-F720-55K FR-F720-75K
FR-F720-90K? FR-F720-110K
F740系列：FR-F740-0.75K FR-F740-1.5K FR-F740-2.2K FR-F740-3.7K FR-F740-5.5K
FR-F740-7.5K? FR-F740-11K FR-F740-15K FR-F740-18.5K FR-F740-22K FR-F740-30K
FR-F740-37K FR-F740-45K FR-F740-55K FR-F740-S75K FR-F740-S90K FR-F740-S110K
