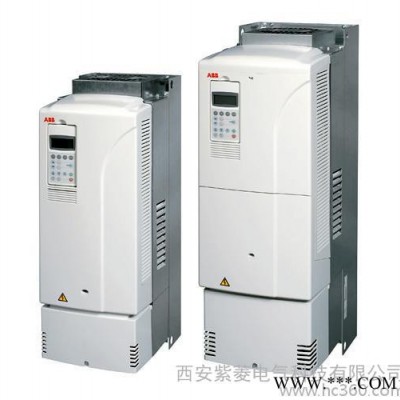

| 产品系列 | ACS800 |
|---|---|
| 额定电压 | 三相AC380-440 |
| 应用范围 | 工程型 |
| 品牌 | ABB变频器 |
| 型号 | ACS800系列 |
| | 无过载应用 | 轻载应用 | 重载应用 | |||
| 产品型号 | 输出电流 | 电机功率 | 输出电流 | 电机功率 | 输出电流 | 电机功率 |
| ACS800-01-0003-3+P901 | 5.1 | 1.5 | 4.7 | 1.5 | 3.4 | 1.1 |
| ACS800-01-0004-3+P901 | 6.5 | 2.2 | 5.9 | 2.2 | 4.3 | 1.5 |
| ACS800-01-0005-3+P901 | 8.5 | 3 | 7.7 | 3 | 5.7 | 2.2 |
| ACS800-01-0006-3+P901 | 10.9 | 4 | 10.2 | 4 | 7.5 | 3 |
| ACS800-01-0009-3+P901 | 13.9 | 5.5 | 12.7 | 5.5 | 9.3 | 4 |
| ACS800-01-0011-3+P901 | 19 | 7.5 | 18 | 7.5 | 14 | 5.5 |
| ACS800-01-0016-3+P901 | 25 | 11 | 24 | 11 | 19 | 7.5 |
| ACS800-01-0020-3+P901 | 34 | 15 | 31 | 15 | 23 | 11 |
| ACS800-01-0025-3+P901 | 44 | 22 | 41 | 18.5 | 32 | 15 |
| ACS800-01-0030-3+P901 | 55 | 30 | 50 | 22 | 37 | 18.5 |
| ACS800-01-0040-3+P901 | 72 | 37 | 69 | 30 | 49 | 22 |
| ACS800-01-0050-3+P901 | 86 | 45 | 80 | 37 | 60 | 30 |
| ACS800-01-0060-3+P901 | 103 | 55 | 94 | 45 | 69 | 37 |
| ACS800-01-0075-3+P901 | 145 | 75 | 141 | 75 | 100 | 45 |
| ACS800-01-0100-3+P901 | 166 | 90 | 155 | 75 | 115 | 55 |
| ACS800-01-0120-3+P901 | 202 | , , , 110 | 184 | 90 | 141 | 75 |
| ACS800-01-0135-3+P901 | 225 | 110 | 220 | 110 | 163 | 90 |
| ACS800-01-0165-3+P901 | 260 | 132 | 254 | 132 | 215 | 110 |
| | 290 | 160 | 285 | 160 | 234 | 132 |
| ACS800-01-0004-5+P901 | 4.9 | 2.2 | 4.5 | 2.2 | 3.4 | 1.5 |
| ACS800-01-0005-5+P901 | 6.2 | 3 | 5.6 | 3 | 4.2 | 2.2 |
| ACS800-01-0006-5+P901 | 8.1 | 4 | 7.7 | 4 | 5.6 | 3 |
| ACS800-01-0009-5+P901 | 10.5 | 5.5 | 10 | 5.5 | 7.5 | 4 |
| ACS800-01-0011-5+P901 | 13.2 | 7.5 | 12 | 7.5 | 9.2 | 5.5 |
| ACS800-01-0016-5+P901 | 19 | 11 | 18 | 11 | 13 | 7.5 |
| ACS800-01-0020-5+P901 | 25 | 15 | 23 | 15 | 18 | 11 |
| ACS800-01-0025-5+P901 | 34 | 18.5 | 31 | 18.5 | 23 | 15 |
| ACS800-01-0030-5+P901 | 42 | 22 | 39 | 22 | 32 | 18.5 |
| ACS800-01-0040-5+P901 | 48 | 30 | 44 | 30 | 36 | 22 |
| ACS800-01-0050-5+P901 | 65 | 37 | 61 | 37 | 50 | 30 |
| ACS800-01-0060-5+P901 | 79 | 45 | 75 | 45 | 60 | 37 |
| ACS800-01-0070-5+P901 | 96 | 55 | 88 | 55 | 69 | 45 |
| ACS800-01-0105-5+P901 | 145 | 90 | 141 | 90 | 100 | 55 |
| ACS800-01-0120-5+P901 | 157 | 90 | 145 | 90 | 113 | 75 |
| ACS800-01-0140-5+P901 | 180 | 110 | 163 | 110 | 141 | 90 |
| ACS800-01-0165-5+P901 | 225 | 132 | 220 | 132 | 163 | 110 |
| ACS800-01-0205-5+P901 | 260 | 160 | 254 | 160 | 215 | 132 |
| ACS800-01-0255-5+P901 | 290 | 200 | 285 | 200 | 234 | 160 |
| ACS800-01-0011-7+P901 | 13 | 11 | 11.5 | 7.5 | 8.5 | 5.5 |
| ACS800-01-0016-7+P901 | 17 | 15 | 15 | 11 | 11 | 7.5 |
| ACS800-01-0020-7+P901 | 22 | 18.5 | 20 | 15 | 15 | 11 |
| ACS800-01-0025-7+P901 | 25 | 22 | 23 | 18.5 | 19 | 15 |
| ACS800-01-0030-7+P901 | 33 | 30 | 30 | 22 | 22 | 18.5 |
| ACS800-01-0040-7+P901 | 36 | 30 | 34 | 30 | 27 | 22 |
| ACS800-01-0050-7+P901 | 51 | 45 | 46 | 37 | 34 | 30 |
| ACS800-01-0060-7+P901 | 57 | 55 | 52 | 45 | 42 | 37 |
| ACS800-01-0070-7+P901 | 79 | 75 | 73 | 55 | 54 | 45 |
| ACS800-01-0100-7+P901 | 93 | 90 | 86 | 75 | 62 | 55 |
| ACS800-01-0120-7+P901 | 113 | 110 | 108 | 90 | 86 | 75 |
| ACS800-01-0145-7+P901 | 134 | 132 | 125 | 110 | 95 | 90 |
| ACS800-01-0175-7+P901 | 166 | 160 | 155 | 132 | 131 | 110 |
| ACS800-01-0205-7+P901 | 190 | 160 | 180 | 160 | 147 | 132 |
