| 品牌 | 日本 |
|---|---|
| 型号 | SDR-40 |

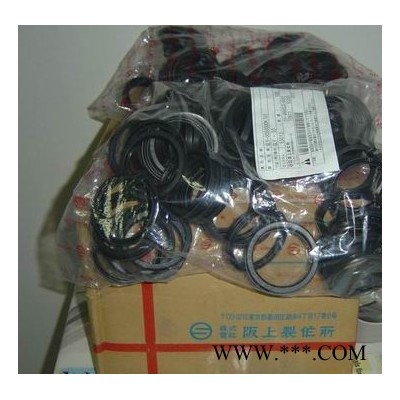

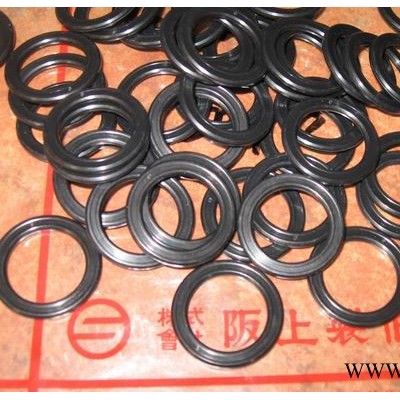

DR 气动密封件 防尘油封 日本阪上 SAKAGAMI
型号明细 | 密封件的公称尺寸及腔体尺寸 | ||||||||
SDR | |||||||||
标准 | 耐热用 | 耐寒用 | d | D | H | t | G | C | B |
SDR-40 | SDR-40F | *SDR-40N | 40 | 48 | 6.5 | 5 | 6 | 44 | 2 |
SDR-45 | SDR-45F |
| 45 | 53 | 6.5 | 5 | 6 | 49 | 2 |
SDR-50 | SDR-50F | *SDR-50N | 50 | 58 | 6.5 | 5 | 6 | 54 | 2 |
SDR-53 | *SDR-53F |
| 53 | 61 | 6.5 | 5 | 6 | 57 | 2 |
SDR-55 | *SDR-55F |
| 55 | 63 | 6.5 | 5 | 6 | 59 | 2 |
SDR-56 | SDR-56F |
| 56 | 64 | 6.5 | 5 | 6 | 60 | 2 |
SDR-60 | SDR-60F |
| 60 | 68 | 6.5 | 5 | 6 | 64 | 2 |
SDR-63 | *SDR-63F | *SDR-63N | 63 | 71 | 6.5 | 5 | 6 | 67 | 2 |
SDR-65 | *SDR-65F |
| 65 | 73 | 6.5 | 5 | 6 | 69 | 2 |
*SDR-67 | *SDR-67F | *SDR-67N | 67 | 75 | 6.5 | 5 | 6 | 71 | 2 |
SDR-70 | SDR-70F |
| 70 | 80 | 8 | 6 | 7 | 75 | 3 |
SDR-71 | *SDR-71F | *SDR-71N | 71 | 81 | 8 | 6 | 7 | 76 | 3 |
SDR-75 | *SDR-75F | *SDR-75N | 75 | 85 | 8 | 6 | 7 | 80 | 3 |
SDR-80 | SDR-80F |
| 80 | 90 | 8 | 6 | 7 | 85 | 3 |
SDR-85 | *SDR-85F | *SDR-85N | 85 | 95 | 8 | 6 | 7 | 90 | 3 |
SDR-90 | SDR-90F |
| 90 | 100 | 8 | 6 | 7 | 95 | 3 |
SDR-95 | *SDR-95F | *SDR-95N | 95 | 105 | 8 | 6 | 7 | 100 | 3 |
SDR-100 | SDR-100F | *SDR-100N | 100 | 110 | 8 | 6 | 7 | 105 | 3 |
40
6.5
5
6
36
2
SDR-35
SDR-35F
35
43
6.5
5
6
39
2
SDR-35.5
SDR-35.5F
*SDR-35.5N
35.5
43.5
6.5
5
6
39.5
2
SDR-36
*SDR-36F
36
44
6.5
5
6
40
2
*SDR-
0038001
N906
38
46
6.5
5
6
42
2
