| 品牌 | HALDER |
|---|---|
| 型号 | 2272 |
| 建议零售价 | ￥0.00 |
| 类别 | 闭口销 |
| 标准类型 | 德标 |
| 标准编号 | GB879-86 |
| 公称直径 | 4--12（mm） |
| 表面处理 | 氧化发黑 |
| 材料等级 | 碳钢 |
| 应用范围 | 机械工业用紧固件 |
| 加工定制 | 否 |
| 样品或现货 | 现货 |
| 公称长度 | 见参数 |
| 属性 | 属性值 |

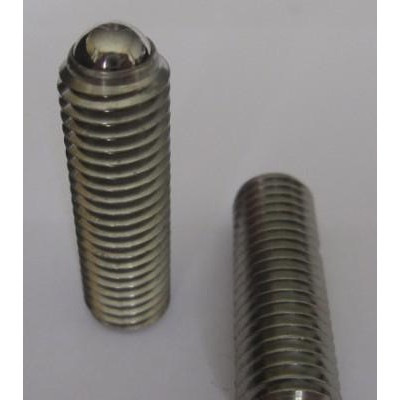

本体 钢材 处理:染黑
硬度:HRC39～44
珠子 材质:Derlrin塑胶
硬度:HRC56～60
注意 : ?1KN≒102Kgf
| 品号 | B | A | C | 珠子 Ø | **大荷重 max.KN | 质量 (g) |
| 2272.342 | M4×0.7 | 6.0 | 2.0 | 2.5 | 0.3 | 0.4 |
| 2272.343 | M4×0.7 | 8.0 | 2.0 | 2.5 | 0.3 | 0.6 |
| 2272.344 | M4×0.7 | 10.0 | 2.0 | 2.5 | 0.3 | 0.7 |
| 2272.345 | M4×0.7 | 12.0 | 2.0 | 2.5 | 0.3 | 0.8 |
| 2272.346 | M4×0.7 | 16.0 | 2.0 | 2.5 | 0.3 | 1.1 |
| 2272.352 | M5×0.8 | 8.0 | 2.5 | 3.0 | 0.5 | 0.8 |
| 2272.353 | M5×0.8 | 10.0 | 2.5 | 3.0 | 0.5 | 1.0 |
| 2272.354 | M5×0.8 | 12.0 | 2.5 | 3.0 | 0.5 | 1.3 |
| 2272.355 | M5×0.8 | 16.0 | 2.5 | 3.0 | 0.5 | 1.8 |
| 2272.356 | M5×0.8 | 20.0 | 2.5 | 3.0 | 0.5 | 2.3 |
| 2272.358 | M5×0.8 | 25.0 | 2.5 | 3.0 | 0.5 | 2.9 |
| 2272.362 | M6×1.0 | 10.8 | 3.0 | 4.0 | 0.9 | 1.5 |
| 2272.363 | M6×1.0 | 12.8 | 3.0 | 4.0 | 0.9 | 2.0 |
| 2272.364 | M6×1.0 | 16.8 | 3.0 | 4.0 | 0.9 | 2.4 |
| 2272.365 | M6×1.0 | 20.8 | 3.0 | 4.0 | 0.9 | 3.1 |
| 2272.366 | M6×1.0 | 25.8 | 3.0 | 4.0 | 0.9 | 3.9 |
| 2272.381 | M8×1.25 | 11.2 | 4.0 | 5.5 | 1.5 | 2.6 |
| 2272.382 | M8×1.25 | 13.2 | 4.0 | 5.5 | 1.5 | 3.2 |
| 2272.383 | M8×1.25 | 17.2 | 4.0 | 5.5 | 1.5 | 4.1 |
| 2272.384 | M8×1.25 | 21.2 | 4.0 | 5.5 | 1.5 | 5.7 |
| 2272.385 | M8×1.25 | 26.2 | 4.0 | 5.5 | 1.5 | 7.3 |
| 2272.386 | M8×1.25 | 31.2 | 4.0 | 5.5 | 1.5 | 8.9 |
| 2272.401 | M10×1.5 | 13.7 | 5 | 7.0 | 2.0 | 5.0 |
| 2272.402 | M10×1.5 | 17.7 | 5 | 7.0 | 2.0 | 6.8 |
| 2272.403 | M10×1.5 | 21.7 | 5 | 7.0 | 2.0 | 8.7 |
| 2272.404 | M10×1.5 | 26.7 | 5 | 7.0 | 2.0 | 11.2 |
| 2272.405 | M10×1.5 | 31.7 | 5 | 7.0 | 2.0 | 13.7 |
| 2272.406 | M10×1.5 | 36.7 | 5 | 7.0 | 2.0 | 16.2 |
| 2272.408 | M10×1.5 | 41.7 | 5 | 7.0 | 2.0 | 18.7 |
| 2272.421 | M12×1.75 | 18.0 | 6 | 8.5 | 3.0 | 10.0 |
